Turnkey Commercial Warehouse Spray Foam & 18-Mil DC315 Thermal Barrier Cost in Toronto & Ontario (2026 B2B Guide)
For general contractors, industrial REIT asset managers, and commercial building owners across Toronto, Mississauga, Brampton, Vaughan, Hamilton, and Southern Ontario, coordinating commercial warehouse insulation and code-mandated fire protection as two separate sub-contracts is one of the fastest ways to blow a construction schedule. When an insulation contractor sprays bare polyurethane foam onto a corrugated steel roof deck or high-bay wall and leaves the site, municipal building inspectors and Fire Marshals immediately issue a stop-work or occupancy hold until a certified 15-minute thermal barrier is installed under Ontario Building Code Division B Section 3.1.4.2.
That is why Ontario’s leading general contractors and facility managers book a Single-Source Turnkey 2 lb Closed-Cell Spray Foam + 18-Mil DC315 Thermal Barrier Package with Sprayfoam Solutions Toronto Inc. As a Single-Source Certified Spray Foam & Fire Coating Contractor operating Caliber Certified (CAN/ULC-S705.2 Licensed) Installers and IFTI Certified DC315 fire coating crews, we mobilize our heated reactor rigs and 3,000+ PSI commercial airless fleet under one unified schedule, one scissor-lift rental, one poly-masking setup, and one consolidated municipal inspection compliance binder. Get a $250 Credit on Your Estimate — Check Your Price in 60 Seconds (/price-chat) • No Site Visit Required, or submit drawings through our General Contractor & B2B Estimating Desk.
Compare our 3 commercial B2B volume pricing tiers across the GTA & Ontario before checking your exact square-foot estimate in 60 seconds:
- 2"–3" Closed-Cell 2 lb SPF + 18-Mil WFT DC315 (or $2.25–$3.25/sq ft DC315 Rescue Only)
- Signed CCMC #14036-R Binder
- Includes $250 Estimate Credit
- 2.5"–3.5" Closed-Cell 2 lb SPF (R-15 to R-21) + 18-Mil WFT (12-Mil DFT) IFTI DC315
- Single-Mobilization Lift & Masking
- Passes OBC 3.1.4.2 & SB-10
- High-Production Multi-Rig 2 lb SPF + 3,000 PSI Airless DC315 Thermal Barrier
- Full Elcometer DFT & CAN/ULC-S705.2 Lot Logs
- Priority B2B Tender Pricing
2026 Turnkey 2 lb Closed-Cell Spray Foam + 18-Mil DC315 Warehouse Cost Per Sq Ft in Ontario
In 2026, commercial warehouse spray foam insulation cost in Ontario averages $2.50 to $4.85 per sq ft ($1.10 to $1.45 per board foot) for 2 lb medium-density closed-cell spray polyurethane foam (CAN/ULC-S705.1), while standalone DC315 fire coating cost averages $1.75 to $3.25 per sq ft installed at 18 to 24 mils Wet Film Thickness (WFT). When bundled into our Single-Source Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Package, combined pricing drops to $4.25 to $7.50 per square foot depending on foam depth (2.0" to 3.5"+), ceiling deck height (18 ft to 40 ft clear), and total square footage:
| Commercial Warehouse Assembly / Scope | Foam + DC315 Technical Specification | 2026 Installed Rate (/sq ft) | Typical Commercial Project Total | Ontario Building Code Status |
|---|---|---|---|---|
| DC315 Red-Tag Inspection Rescue Only (Over Existing Bare Foam) | 18–24 Mils WFT (12–16 Mils DFT) IFTI DC315® | $1.75 – $3.25 / sq ft | $4,500 – $18,500 (1,500–6,000 sq ft) | Clears Municipal Occupancy Order (CAN/ULC-S124) |
| 2.0" Closed-Cell SPF + 18-Mil DC315 (Condensation & Vapour Control) | 2.0" 2 lb SPF (R-12) + 18-Mil WFT DC315 | $4.25 – $5.40 / sq ft | $21,250 – $54,000 (5,000–10,000 sq ft) | Class 1 Vapour Barrier + 15-Min Thermal Barrier |
| 3.0" Closed-Cell SPF + 18-Mil DC315 (Standard High-Bay Warehouse Wall) | 3.0" 2 lb SPF (R-18) + 18-Mil WFT DC315 | $4.95 – $6.35 / sq ft | $39,600 – $95,250 (8,000–15,000 sq ft) | Passes OBC SB-10 Commercial Wall Envelope |
| 3.5" Closed-Cell SPF + 18-Mil DC315 (Underside of Steel Roof Deck) | 3.5" 2 lb SPF (R-21) + 18-Mil WFT DC315 | $5.50 – $7.50 / sq ft | $55,000 – $175,000+ (10,000–25,000 sq ft) | Monolithic Roof Deck Seal + OBC 3.1.4.2 Pass |
| Shipping Container / Modular Mech Room (High-Density Envelope) | 2.0"–3.0" 2 lb SPF + 18-Mil WFT DC315 | $4.85 – $6.90 / sq ft | $4,200 – $14,800 (Per Unit / Bay) | Zero Interior Framing Loss + Fire Marshal Sign-Off |
2026 Worked Commercial Warehouse Examples (2,500 Sq Ft Bay vs. 10,000 Sq Ft Warehouse vs. 25,000+ Sq Ft Facility)
Because industrial buildings vary from single-tenant condo bays near Pearson Airport to massive logistics centers in Vaughan, Brampton, and Milton, unit pricing scales significantly with surface area and scissor-lift production efficiency. Below are three transparent 2026 worked commercial estimates comparing our turnkey 2 lb closed-cell spray foam + 18-mil IFTI DC315 package against two separate sub-trade bids:
| Worked Commercial Facility Scope | Total Sprayable Surface Area | Turnkey Spec (CAN/ULC-S705.1 + S124) | 2 Separate Sub-Trades Cost | Our Single-Source Turnkey Price |
|---|---|---|---|---|
| 2,500 Sq Ft Industrial Condo Bay (Demising Walls, Overhead Door Header & Roof Deck) | 2,500 sq ft (18–22 ft clear height) | 2.5" 2 lb Closed-Cell SPF (R-15) + 18-Mil WFT DC315 (Charcoal or White) | $16,500 – $22,000 (2 mobilization & lift fees) | $12,800 – $16,900 (Saves $3,700–$5,100) |
| 10,000 Sq Ft Mid-Size Warehouse (Corrugated Metal Walls & Fluted Steel Deck) | 10,000 sq ft (24–28 ft clear height) | 3.0" 2 lb Closed-Cell SPF (R-18) + 18-Mil WFT DC315 + Elcometer DFT Log | $62,000 – $79,500 (Split masking & trade delay) | $47,500 – $61,500 (Saves $14,500–$18,000) |
| 25,000 Sq Ft Distribution Facility (Full Envelope Steel Deck + Pre-Cast / CMU Walls) | 25,000 sq ft (28–36 ft clear height) | 3.5" 2 lb Closed-Cell SPF (R-21) + 18-Mil WFT DC315 + Full Engineering Binder | $155,000 – $198,000 (Multi-week split schedule) | $112,500 – $147,500 (Saves $42,500–$50,500) |
Why Single-Source Turnkey Contracting (Foam + DC315) Saves 20–30% Over Hiring Two Separate Sub-Trades
When a general contractor hires an insulation company to spray metal building insulation and later hires a commercial painting or fireproofing sub-trade to apply IFTI DC315 thermal barrier coating, the project pays twice for every non-chemical overhead item. By contracting Sprayfoam Solutions Toronto Inc. as your Single-Source Certified Spray Foam & Fire Coating Contractor, you eliminate five redundant cost centers:
- 1. One Scissor-Lift & Boom-Lift Rental Window (Saves $1,800 – $6,500+): High-reach electric scissor lifts (
26 ftto45 ft) and articulating boom lifts are already on site for our spray foam crew. Our DC315 airless crew uses the exact same staging immediately after the foam cures—eliminating duplicate delivery, pickup, and weekly rental charges. - 2. Single Polyethylene Masking & Negative-Pressure Setup (Saves $1,500 – $4,800): Masking overhead crane rails, ESFR sprinkler heads, unit heaters, dock doors, and concrete slabs takes 20% to 30% of total jobsite labour. We mask the warehouse once with heavy-duty poly and keep the protection in place through both the
CAN/ULC-S705.1foam pass and the18-mil WFT DC315topcoat. - 3. Zero Cross-Trade Finger-Pointing on Substrate Adhesion & Cure Window: Separate painting contractors frequently blame foam texture, surface dust, or chemical lot variance if their coating delaminates or fails a dry-film pin-gauge check. Because our Caliber Certified and IFTI Certified technicians control both chemical passes, we guarantee inter-coat compatibility and warrant the entire assembly.
- 4. Guaranteed Chemical-to-Coating Listing Match (
CCMC #14036-R): Not every thermal barrier coating is fire-tested over every brand of closed-cell spray foam. We pair approved spray foam systems (BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals) with matching certified thermal barriers (IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings). - 5. Compressed Critical-Path Schedule (Saves 5 to 12 Construction Days): Instead of waiting two weeks between sub-trades while your electrical and racking contractors sit idle, our turnkey crew sprays the 2 lb closed-cell foam on Days 1–3, allows the manufacturer-mandated 24-hour cure, and applies the 18-mil DC315 thermal barrier on Days 4–5.
Ontario Building Code Section 3.1.4.2, SB-10 & CAN/ULC-S124 Thermal Barrier Compliance
Under 2026 Ontario Building Code Division B Section 3.1.4.2 (Protection of Foamed Plastics) and Section 9.10.17.10, any spray-applied polyurethane foam insulation installed inside a commercial, industrial, agricultural, or Part 3/Part 9 building must be protected on the interior side by an approved 15-minute thermal barrier. While residential basements use 1/2" gypsum drywall over wood studs, framing and hanging heavy drywall across a 28-foot corrugated steel warehouse roof deck or Flute profile is structurally impractical and prohibitively expensive (see our DC315 vs. Drywall Thermal Barrier Cost Comparison).

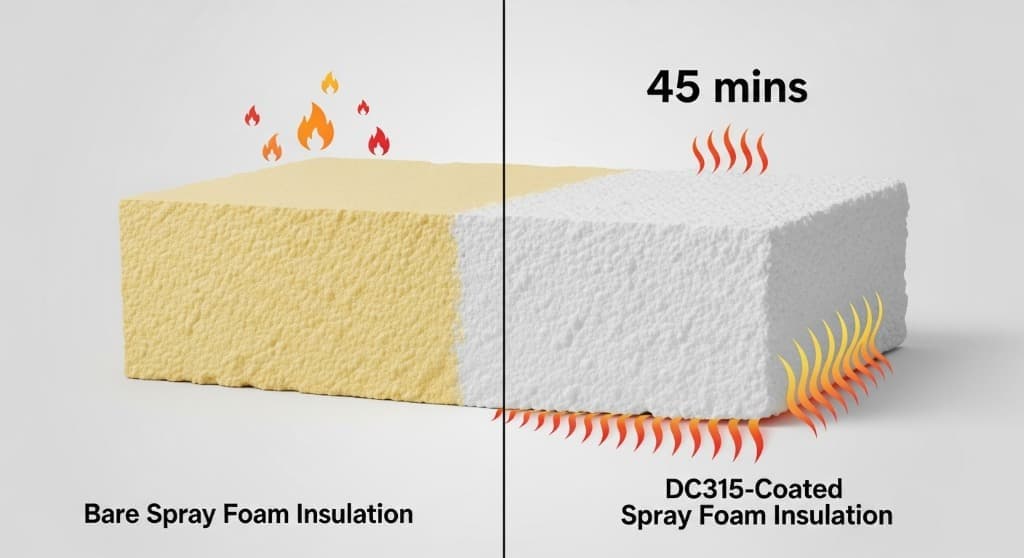

Why 18 Mils Wet Film Thickness (12 Mils Dry Film) IFTI DC315 Is Required Over Exposed Spray Foam
During a commercial building fire, unprotected polyurethane foam can ignite and contribute to rapid flashover if radiant heat reaches the foam core. Evaluated by the Canadian Construction Materials Centre (CCMC #14036-R) and tested to CAN/ULC-S124 and NFPA 286, IFTI DC315® is a water-based latex intumescent coating. When exposed to temperatures above 200°C (392°F), the 12-mil Dry Film Thickness (18-mil WFT) coating swells (intumesces) up to 50 times its dry thickness into a dense, insulating carbonaceous char foam that keeps the underlying 2 lb spray foam below its ignition threshold for the code-mandated 15-minute thermal barrier rating.
How Our Municipal Inspector Sign-Off Binder (CCMC #14036-R + Calibrated Elcometer DFT Logs + CAN/ULC-S705.2 Lot Sheets) Clears Occupancy
Municipal building officials in Toronto, Mississauga, Brampton, Vaughan, Markham, and Hamilton will not grant commercial occupancy based solely on a visual glance at painted foam. They require verifiable third-party documentation proving that both the foam and the coating match their tested assembly. On every turnkey warehouse project, Sprayfoam Solutions Toronto Inc. hands your site superintendent or architect a complete Municipal Inspector Sign-Off Binder containing:
- CAN/ULC-S705.2 Daily Work Record & Drum Batch Logs: Signed daily worksheets by our Caliber Certified (CAN/ULC-S705.2 Licensed) lead sprayer recording ambient temperature, substrate moisture (
<18%), core density tests (≥2.0 lb/ft³), and isocyanate/resin drum lot numbers. - CCMC #14036-R & UL ER19731 Evaluation Reports: Official Canadian Construction Materials Centre and UL evaluation tables matching your specific closed-cell foam brand (
BASF Walltite Eco v.3,Huntsman,Johns Manville) to the exact tested IFTI DC315 wet and dry mil thickness. - Timestamped WFT Comb & Calibrated Elcometer DFT Logs: Photo-verified Wet Film Thickness notch-gauge checks taken every
500 sq ftduring spraying, followed by cured Dry Film Thickness (≥12.0 mils DFT) verification logs and pails consumed vs. net square footage calculations (~80–89 sq ft per US gallonat18 mils WFT). - Signed IFTI Applicator Certificate of Compliance: Official contractor warranty letter confirming installation in strict accordance with OBC Section 3.1.4.2, CAN/ULC-S124, and manufacturer data sheets.
Degreased, dry (<18% moisture) & poly-masked.
Solvent-wiped galvanized flutes & primed tie-ins.
Prevents thermal shock delamination on metal decks.
Commercial corrugated steel roof decks and wall panels often carry rolling oils, warehouse dust, or winter frost that ruin foam adhesion if ignored. Our Caliber Certified crew tests substrate moisture (<18%), checks steel surface temperatures with infrared pyrometers, and masks all sprinkler heads, buss ducts, and overhead door tracks before a single drop of chemical is sprayed.
6 Critical On-Site Trade Rules for Commercial Warehouse Spray Foam & DC315 Projects
Executing a 10,000 to 50,000+ sq ft commercial building envelope in Ontario requires strict adherence to chemical physics and jobsite sequencing. Here are the 6 critical on-site trade rules our commercial engineering team enforces on every warehouse project:
- 1. Respect the Mandatory 24-Hour Exothermic Cure Window Between SPF & DC315: Never allow a contractor to spray water-based DC315 thermal barrier paint over fresh polyurethane foam the same afternoon. Closed-cell 2 lb spray foam requires a full 24-hour exothermic cure and cool-down period before topcoating; trapping heat or trace blowing-agent gas beneath wet latex film causes micro-blistering and coating delamination.
- 2. Control Smooth Pass Technique (
≤2.0" Lifts) to Prevent 15%–25% Coating Overage: Rough, popcorn-textured, or overly thick single passes of spray foam dramatically increase surface area and swallow extra gallons of expensive intumescent coating. Our Caliber Certified sprayers lay down smooth, uniform passes (≤2.0" per lift) so the subsequent18-mil WFT DC315coat achieves full12-mil DFTcoverage without wasting chemical. - 3. Maintain Steel Substrate Temperature ≥10°C (50°F) & Dew Point Spread ≥3°C: During Ontario winters, corrugated metal siding and roof decks conduct sub-zero exterior cold. We deploy high-BTU indirect-fired heaters, heated chemical drum blankets, and
150-footheated proportioner hoses to keep substrate temperatures within theCAN/ULC-S705.2specification window—and keep indoor air≥10°C (50°F)with<65% relative humiditywhile the water-based DC315 cures. - 4. Mask All ESFR Sprinkler Heads, Crane Rails, Busbars & Dock Levelers: High-bay warehouses contain sensitive Early Suppression Fast Response (ESFR) fire sprinklers that must never receive a single speck of overspray—or the sprinkler contractor will charge
$150+ per headto replace them. We individually bag every sprinkler head, mask overhead bridge-crane electrification rails, and wrap HVAC unit heaters before spraying. - 5. Specify Bright White DC315 on High-Bay Ceilings to Cut Lighting Wattage by 20%: IFTI DC315® is manufactured in White, Ice Grey, Charcoal Grey, and Dark Black. Specifying White or Ice Grey across warehouse ceilings and upper walls acts as a high-reflectance light diffuser above LED high-bay fixtures, while Charcoal or Black provides a clean architectural finish for exposed retail, brewery, or showroom ceilings.
- 6. Protect High-Traffic Forklift Zones (Bottom 8 Ft of Walls) Against Mechanical Impact: While
2 lb closed-cell foam + 18-mil DC315forms a tough, monolithic thermal barrier across upper walls and roof decks, active loading-dock zones where forklifts or pallet jacks can gouge the wall should incorporate plywood wainscot, steel bollards, or CMU block up to8 feetAFF.
Turnkey 2 lb Spray Foam + DC315 vs. Fiberglass Blanket & Type X Drywall (2026 Comparison)
Architects and general contractors pricing spray foam for metal buildings or warehouse retrofits frequently compare our turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 package against traditional vinyl-faced fiberglass blanket insulation or metal-stud framing with 5/8" Type X gypsum drywall. Here is how the three assemblies compare in 2026 across cost, code compliance, and structural load:
| Performance & Cost Metric | Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 | Framed Hat-Channel + 1/2" or 5/8" Drywall Over SPF | Vinyl-Faced Fiberglass Blanket / Batts |
|---|---|---|---|
| 2026 Installed Cost (/sq ft) | $4.25 – $7.50 / sq ft (Complete Turnkey) | $8.50 – $13.50 / sq ft (Foam + Framing + Board + Tape) | $2.75 – $4.50 / sq ft (Fails Air Seal & Sweats) |
| OBC 3.1.4.2 Thermal Barrier | Yes — Certified CAN/ULC-S124 (CCMC #14036-R) | Yes — 15-Min to 45-Min Gypsum Barrier | Exposed Vinyl Scrim Often Fails Fire Marshal Audit |
| Dead Load Added to Roof Deck | < 0.65 lbs / sq ft (Safe on Lightweight Joists) | 2.2 to 3.5+ lbs / sq ft (Often Overloads Steel Purlins) | 0.40 lbs / sq ft (Sags over time when damp) |
| Air & Class 1 Vapour Barrier | 100% Monolithic Air & Class 1 Vapour Seal | Penetrated by thousands of drywall screws & tracks | Seams tear; warm indoor air condenses on cold steel |
| Contour Fit on Fluted Decks | Sprays seamlessly into purlins, girts & flutes | Requires costly custom bulkheads around every beam | Leaves hollow convection voids behind roof purlins |
| Installation Speed (10,000 Sq Ft) | 4 to 5 Working Days (Single Turnkey Crew) | 14 to 21 Working Days (3 Separate Sub-Trades) | 6 to 10 Working Days (High rework rate) |
Same-Week Commercial Mobile Rig & 3,000 PSI Airless Fleet Dispatch Across Toronto & Ontario
Every commercial warehouse, industrial condo bay, and metal building project is executed by our Caliber Certified (CAN/ULC-S705.2 Licensed) & IFTI Certified Fire Coating Installers with $0 surrounding GTA travel fee across Toronto, Mississauga, Brampton, Vaughan, Markham, Oakville, Burlington, Hamilton, Pickering, Ajax, Whitby, Oshawa, Milton, and Barrie:
Get an instant ballpark at /price-chat or send RCP/section drawings for a fixed-price turnkey SPF + DC315 takeoff.
We mask ESFR sprinklers, dock doors, crane rails, and slabs, and verify steel/CMU substrate moisture (<18%).
Precision heated-reactor application of 2.0"–3.5" closed-cell spray foam across walls, flutes, and roof decks.
3,000 PSI airless application of 18-mil WFT DC315, Elcometer DFT verification, cleanup, and CCMC #14036-R binder sign-off.
Select your commercial building envelope scope or local GTA industrial municipality below for 2026 unit rates and same-week rig dispatch:
Frequently Asked Questions
In 2026, a single-source turnkey 2 lb closed-cell spray polyurethane foam (CAN/ULC-S705.1) + 18-mil WFT IFTI DC315® thermal barrier (CAN/ULC-S124) warehouse package in Toronto and Ontario costs $4.25 to $7.50 per square foot installed. Small industrial condo bays (1,500–4,000 sq ft) average $4.95–$7.50/sq ft, mid-size commercial warehouses (5,000–15,000 sq ft) average $4.50–$6.25/sq ft, and large distribution facilities (15,000–50,000+ sq ft) scale down to $4.25–$5.60/sq ft. Check your exact price in 60 seconds and claim a $250 Estimate Credit at spfsolutions.ca/price-chat.
If your commercial bay, warehouse, or mechanical room already has exposed spray foam and received a municipal building inspector or Fire Marshal deficiency notice, Sprayfoam Solutions Toronto Inc. provides rapid Red-Tag Inspection Rescue across the GTA. Standalone 18-mil WFT (12-mil DFT) IFTI DC315® thermal barrier coating over existing bare spray foam costs $1.75 to $3.25 per sq ft installed and includes our complete CCMC #14036-R + Elcometer DFT Inspector Sign-Off Binder to clear your occupancy permit.
Yes. Under 2026 Ontario Building Code Division B Section 3.1.4.2 and Section 9.10.17.10, foamed plastic insulation must be protected by a 15-minute thermal barrier. IFTI DC315® holds CCMC Evaluation Report #14036-R and passes full-scale CAN/ULC-S124, NFPA 286, and UL 1715 fire testing at 18 mils Wet Film Thickness (12 mils Dry Film Thickness) over approved closed-cell and open-cell spray foam brands—providing an inspector-approved equivalent to 1/2" gypsum drywall without framing or structural dead load.
To pass Ontario municipal inspection, the intumescent coating must be specifically fire-tested over the installed spray foam brand. Our Caliber Certified and IFTI Certified crews install BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals, paired with IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings.
In commercial warehouse applications, freshly sprayed CAN/ULC-S705.1 2 lb closed-cell polyurethane foam requires a mandatory 24-hour exothermic cure and cool-down window before applying water-based IFTI DC315®. Once the 24-hour cure window is complete and substrate temperatures are verified above 10°C (50°F), our airless crew applies the 18-mil WFT thermal barrier in a single high-build pass, which dries to the touch in 2 to 4 hours and fully cures within 24 hours.
Under Ontario Building Code Supplementary Standard SB-10 (ASHRAE 90.1 / NECB Commercial Envelope Compliance), most heated commercial warehouses in Southern Ontario require 2.0" to 2.5" (R-12 to R-15) for condensation control and semi-heated industrial bays, 3.0" (R-18) on continuous metal or CMU exterior walls, and 3.5" to 4.0" (R-21 to R-24) on the underside of corrugated steel roof decks. At 2.0 inches or thicker, 2 lb closed-cell foam also serves as a certified Class 1 vapour barrier (<60 ng/Pa·s·m²).
IFTI DC315® is factory-manufactured in four architectural colours: White, Ice Grey, Charcoal Grey, and Dark Black. Most industrial distribution centers and manufacturing warehouses select Bright White or Ice Grey to maximize overhead LED light reflectance and brighten work bays, while commercial gyms, breweries, retail showrooms, and automotive facilities frequently specify Charcoal Grey or Dark Black to create a sleek, hidden ceiling deck aesthetic.
No—and understanding this distinction prevents costly inspection delays. IFTI DC315® (CAN/ULC-S124) is a 15-minute thermal barrier specifically tested to protect spray polyurethane foam. If your warehouse’s primary structural steel columns, open-web steel joists, or floor assemblies require a 45-minute, 1-hour, or 2-hour fire-resistance rating (CAN/ULC-S101), our fireproofing division installs dedicated Intumescent Structural Steel Coatings or Cementitious Fireproofing (SFRM) on the steel prior to or alongside your spray foam envelope.
General contractors, engineers, and facility owners can get an instant ballpark estimate with a $250 Estimate Credit in 60 seconds at spfsolutions.ca/price-chat (No Site Visit Required), submit architectural/RCP drawings through our General Contractor Portal, or call our commercial estimating desk directly at (647) 333-3626 for same-week mobile rig dispatch across Toronto, the GTA, and Ontario.
