Fire Retardant Paint for Spray Foam Insulation in Canada: Why Only Certified 18-Mil DC315 Passes Building Code (2026)

Every week across Toronto, Mississauga, Brampton, Vaughan, Hamilton, and Ontario, property owners and general contractors search for "fire retardant paint for spray foam insulation in Canada" after a municipal building inspector or Fire Marshal flags exposed polyurethane foam in a commercial warehouse, metal building, mechanical room, shipping container, or residential crawl space. The most expensive mistake you can make is buying pails of generic "Class A flame-retardant latex paint" from a big-box hardware store and rolling it over bare foam. Under the 2026 Ontario Building Code and the National Building Code of Canada, thin surface flame-spread paints are immediately rejected because they do not stop radiant heat from igniting the polyurethane core behind the paint film.

To legally leave spray foam exposed without hanging 1/2" gypsum drywall, Canadian building code requires a tested 15-minute intumescent thermal barrier coating certified under CAN/ULC-S124 and NFPA 286—specifically 18-mil WFT (12-mil DFT) IFTI DC315® holding CCMC Evaluation Report #14036-R. At Sprayfoam Solutions Toronto Inc., our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers and IFTI Certified DC315 Applicators deliver both rapid Red-Tag inspection rescue over existing bare foam and our Single-Source Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Package across the GTA and Ontario. Get a $250 Credit on Your Estimate — Check Your Price in 60 Seconds (/price-chat) • No Site Visit Required, or submit architectural drawings through our General Contractor & B2B Estimating Desk.

2026 Certified Thermal Barrier Paint Cost Per Sq Ft in Ontario & Canada (DC315 vs. Turnkey SPF + DC315)

In 2026, certified DC315 fire coating cost in Ontario ranges from $1.75 to $3.25 per square foot installed (supply and high-pressure airless application at 18 to 24 mils Wet Film Thickness), whereas booking our Single-Source Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Package costs $4.25 to $7.50 per square foot complete. Below is the 2026 installed cost breakdown across residential crawl spaces, shipping containers, mechanical rooms, and commercial warehouse insulation projects:

Why Hardware-Store "Fire Retardant Paint" Fails Municipal Building Inspections Over Spray Foam

Homeowners and general contractors are often surprised when a building official rejects walls or ceilings coated with retail "flame-retardant paint." The confusion comes down to the critical engineering difference between a Surface Flame-Spread Coating (CAN/ULC-S102 / ASTM E84) and a 15-Minute Thermal Barrier Assembly (CAN/ULC-S124 / NFPA 286 / UL 1715):

Turnkey 2 lb Closed-Cell Spray Foam + 18-Mil DC315 Package vs. Standalone Thermal Barrier Coating

If your project has not been insulated yet—such as a commercial warehouse, metal building, self-storage facility, underground parkade soffit, or sea-can conversion—booking our Single-Source Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Package saves 20% to 30% compared to hiring an insulation company first and bringing in a fireproofing painter later:

• 1. Guaranteed Chemical-to-Coating Listing Compatibility (CCMC #14036-R): A thermal barrier coating is only legal if it has been tested over the exact brand and density of spray foam on your walls. When you hire two separate trades, the painter rarely knows which isocyanate/resin lot was sprayed. Our turnkey team installs BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals — Low-VOC HFO Blown and pairs them directly with IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings.
• 2. Smooth Foam Pass Geometry That Cuts Paint Consumption by 15%–25%: Uncoordinated insulation crews often leave rough, "popcorn" or washboard foam textures that require 24 to 30 mils WFT of DC315 just to cover the high peaks—driving up your fire coating bill. Because our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers know our IFTI Certified airless crew is following right behind them, they spray ultra-smooth, uniform ≤2.0" lifts.
• 3. One Scissor-Lift Rental & One Polyethylene Masking Setup: On high-bay commercial projects (18 ft to 40 ft clear height), lift staging and masking ESFR sprinkler heads, busbars, HVAC units, and dock doors account for up to 25% of project cost. Bundling both passes under Sprayfoam Solutions Toronto Inc. eliminates duplicate mobilization, lift delivery, and masking labour.
• 4. One Consolidated Municipal Occupancy Sign-Off Binder: Instead of chasing a missing foam contractor for daily worksheets while your building inspector withholds occupancy, you receive one unified engineering binder containing both the CAN/ULC-S705.2 Daily Work Record and the CCMC #14036-R + Calibrated Elcometer DFT Certificate.

CAN/ULC-S124, NFPA 286 & CCMC #14036-R Thermal Barrier Requirements Explained (2026 Ontario Building Code)

Whether you are insulating a commercial industrial bay governed by Ontario Building Code Division B Section 3.1.4.2 (Protection of Foamed Plastics) or a residential basement/crawl space governed by Section 9.10.17.10, all foamed plastic insulation must be separated from the interior building space by an approved thermal barrier. Where 1/2" (12.7 mm) gypsum drywall cannot be mechanically fastened—or would destroy headroom, overload steel purlins, or trap moisture—the code permits a certified protective coating evaluated to CAN/ULC-S124 (Standard Method of Test for the Evaluation of Protective Coverings for Foamed Plastic) and NFPA 286 (see our complete IFTI DC315 fire coating guide).

How 18 Mils Wet Film Thickness (12 Mils Dry Film) IFTI DC315 Swells 50x Under Fire Exposure

Evaluated by the National Research Council of Canada — Canadian Construction Materials Centre (CCMC #14036-R), IFTI DC315® is formulated with three synergistic intumescent active ingredients: an acid catalyst (ammonium polyphosphate), a carbonific char builder (pentaerythritol), and a spumific blowing agent (melamine) suspended in a 67% volume-solids water-based acrylic latex binder. When sprayed at 18.0 mils Wet Film Thickness (18/1000ths of an inch), the water evaporates during the 24-hour cure to leave a tough 12.0-mil Dry Film Thickness (DFT) membrane. If a fire breaks out and ambient temperatures reach 200°C (392°F), the endothermic chemical reaction triggers instantly—expanding the 12-mil film up to 50 times its thickness (>0.6 inches of multicellular carbonaceous char) to shield the underlying polyurethane foam for the full 15-minute egress and suppression window.

What Ontario Building Inspectors Require in Your Sign-Off Binder (CCMC #14036-R + Elcometer DFT Logs + CAN/ULC-S705.2 Lot Sheets)

In 2026, municipal building inspectors in Toronto, Mississauga, Brampton, Vaughan, Markham, Oakville, Burlington, and Hamilton do not accept an invoice that simply says "painted foam with fire paint." To clear a Building Code occupancy permit or lift an Order to Comply, our engineering team provides a complete 5-Document Municipal Inspector Sign-Off Binder:

• 1. Official CCMC #14036-R & UL ER19731 Evaluation Tables: Highlighting the exact tested assembly matching your installed closed-cell or open-cell spray foam brand to the applied wet and dry mil thickness.
• 2. Timestamped Wet Film Thickness (WFT) Notch-Gauge Photo Log: Taken every 500 sq ft during live airless application proving a minimum 18.0 mils WFT across walls, ceiling flutes, and structural transitions.
• 3. Calibrated Digital Pin-Gauge Dry Film Thickness (≥12.0 Mils DFT) Report: Post-cure verification readings alongside a Pail-Count vs. Square-Footage Audit (1 five-gallon pail = ~400 to 445 sq ft net coverage at 18 mils WFT assuming zero waste).
• 4. CAN/ULC-S705.2 Daily Work Record (For Turnkey SPF + DC315 Projects): Signed by our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers documenting foam batch numbers, substrate moisture (<18%), and core density (≥2.0 lb/ft³).
• 5. Signed IFTI Certified Applicator Compliance Letter: Official contractor sign-off certificate carrying Sprayfoam Solutions Toronto Inc.’s licence credentials, WSIB clearance, and $5,000,000 commercial liability backing.

6 Critical On-Site Application & Pin-Test Rules for Certified DC315 Thermal Barrier Coating

Why can’t a general house painter or homeowner buy a 5-gallon pail of DC315 online and roll it onto spray foam? Beyond the fact that Ontario building officials require a Certified Applicator Sign-Off Certificate, high-solids intumescent coatings obey strict chemical and hydraulic rules. Here are the 6 on-site trade rules our crews enforce on every project:

• 1. 3,000+ PSI Commercial Airless Sprayer Required (Never Standard Paint Rollers): Trying to roll 18 mils WFT of high-viscosity (67% volume solids) intumescent coating onto contoured spray foam pulls the wet film off the peaks and leaves 4–6 mil pinholes that fail inspection. We deploy heavy-duty 3,000 to 3,300 PSI commercial airless piston pumps (≥1.25 GPM flow rate) with 3/8" high-pressure hoses, airless filter screens removed, and 0.019" to 0.023" reversible spray tips.
• 2. Mandatory 24-Hour Exothermic Cure Window After Spraying Polyurethane Foam: Freshly sprayed CAN/ULC-S705.1 closed-cell foam generates exothermic heat and off-gasses trace blowing agent for 24 hours. Spraying water-based DC315 over warm, uncured foam traps gas pockets and causes widespread blistering or peeling. Our turnkey crews always allow a full 24-hour cure before topcoating.
• 3. Strict 10°C (50°F) Minimum Substrate Temperature & <65% Relative Humidity: Because IFTI DC315® cures by water coalescence and evaporation, applying it onto freezing winter foam (<10°C) or inside an unvented, damp room (>65% RH) prevents film coalescing and causes mud-cracking. We run indirect-fired heaters, industrial dehumidifiers, and high-velocity air movers to maintain ideal curing physics under CCOHS and Ontario Ministry of Labour (OHSA) site protocols.
• 4. Thorough Power-Mixing & Zero Water Thinning: Intumescent fire-retardant solids settle at the bottom of 5-gallon pails during shipping. Every pail must be mechanically power-mixed for 5+ minutes with a heavy-duty mud paddle before pumping, and never thinned with water—thinning dilutes the 67% volume solids and invalidates the 18-mil WFT = 12-mil DFT ratio.
• 5. Removing UV Oxidation ("Yellow Dusting") Before Red-Tag Rescue Coating: If bare spray foam has been left exposed to sunlight or warehouse UV lighting for more than 2 to 4 weeks, the polyurethane surface oxidizes into a friable, chalky orange powder. Spraying DC315 over oxidized foam guarantees delamination; we mechanically brush, vacuum, and prime degraded foam surfaces before applying the thermal barrier.
• 6. Live WFT Comb Checks Every 500 Sq Ft & Pail-Count Reconciliation: Building inspectors frequently divide your total sprayed square footage by 400–445 sq ft per 5-gallon pail to verify that the required volume of chemical was actually applied on site. We log batch numbers and pail counts alongside live wet-mil comb photos in your turnover binder.

Certified 18-Mil DC315 Fire Coating vs. 1/2" Gypsum Drywall vs. Hardware-Store Flame-Retardant Paint (2026 Comparison)

When choosing how to satisfy Ontario Building Code Section 3.1.4.2 or 9.10.17.10 over spray foam, property owners and general contractors compare three options. As detailed in our DC315 vs. Drywall Thermal Barrier Cost Guide, certified 18-mil IFTI DC315 wins decisively on complex, contoured, or high-bay substrates:

Same-Week Certified DC315 Airless Fleet & Turnkey Spray Foam Dispatch Across Toronto, the GTA & Ontario

Whether your project is a 1,200 sq ft residential crawl space in Toronto or a 40,000 sq ft industrial distribution center in Mississauga, Brampton, or Vaughan, Sprayfoam Solutions Toronto Inc. dispatches our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers and IFTI Certified DC315 crews with $0 surrounding GTA travel fee:

OUR 4-STEP CERTIFIED THERMAL BARRIER PROCESS

How We Deliver Turnkey SPF + 18-Mil DC315 & Clear Municipal Inspections

1

60-Second Quote or Red-Tag Review

Step 1 • Instant Pricing

Check your price in 60 seconds at /price-chat or send your inspector notice / drawings to our engineering desk.

2

Substrate Prep & Full Poly Masking

Step 2 • Zero Overspray

We mask sprinklers, windows, mechanicals, and floors, verify <18% moisture, and clean/prep existing foam.

3

2 lb Closed-Cell SPF + 18-Mil DC315

Step 3 • Certified Application

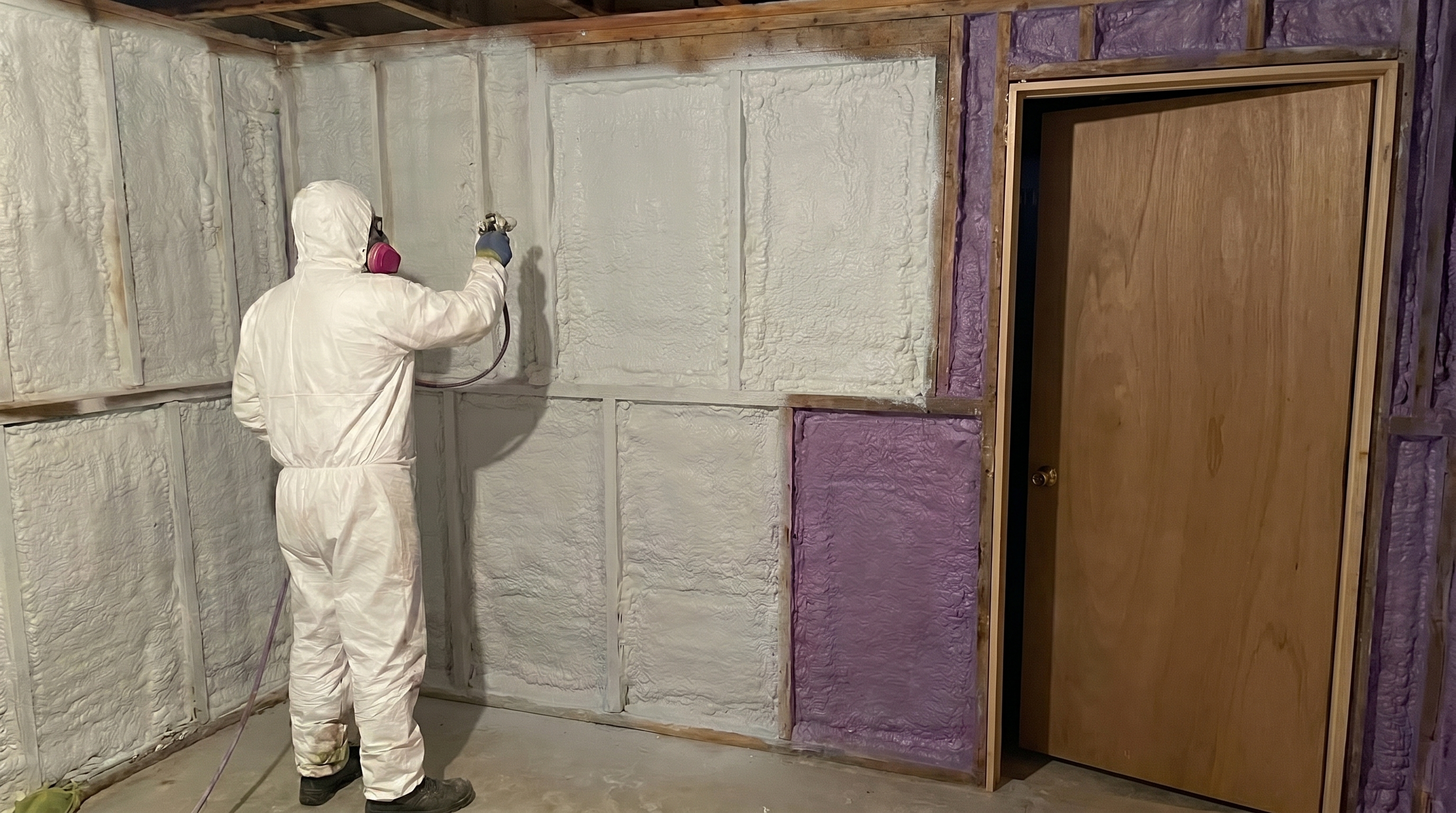

Smooth CAN/ULC-S705.1 2 lb spray foam (if turnkey) followed by 3,000 PSI airless application of 18-mil WFT DC315.

4

DFT Pin-Test & CCMC #14036-R Binder

Step 4 • Inspector Sign-Off

We verify ≥12.0 mils DFT, complete full site cleanup, and hand over your signed CCMC #14036-R compliance binder.
