How to Insulate a Commercial or Residential Metal Roof in Ontario: 2026 Spray Foam Cost & R-Value Guide
Learning how to insulate a metal roof in Ontario—whether on a 15,000 sq ft corrugated steel warehouse deck in Mississauga, a commercial metal shop or agricultural pole barn in Vaughan or Barrie, or a residential standing-seam metal roof over a vaulted ceiling in Toronto—starts with solving one critical building-science failure: interior metal roof condensation ("indoor rain"). Because galvanized steel, Galvalume, and aluminum roof panels have near-zero thermal resistance (R-0.05) and extreme thermal conductivity, any warm, humid indoor air that bypasses fibreglass batts or vinyl-backed blanket insulation immediately hits -20°C winter steel, condenses into frost overnight, and rains rusty water onto inventory, drywall, and structural purlins the moment the morning sun warms the roof.
That is why Ontario’s commercial general contractors, facility engineers, and custom home builders specify 2 lb medium-density closed-cell spray polyurethane foam (CAN/ULC-S705.1) installed by Sprayfoam Solutions Toronto Inc. Operating Caliber Certified (CAN/ULC-S705.2 Licensed) Installers and IFTI Certified Fire Coating Applicators, we deliver both standalone commercial metal building insulation, residential cathedral ceiling spray foam, and our Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Thermal Barrier Package for exposed commercial warehouse roofs. Get a $250 Credit on Your Estimate — Check Your Price in 60 Seconds (/price-chat) • No Site Visit Required, or call (647) 333-3626.
Compare our 3 most common commercial, agricultural, and residential metal roof insulation packages across Toronto, the GTA, and Ontario:
- 2.0"–3.0" 2 lb Closed-Cell SPF (R-12 to R-18)
- Certified Class 1 Vapour Barrier (<60 ng/Pa·s·m²)
- Stops Metal Roof Sweating
- Includes $250 Estimate Credit
- 2.5"–3.5" 2 lb Closed-Cell SPF (R-15 to R-21) + 18-Mil WFT (12-Mil DFT) IFTI DC315 Thermal Barrier
- Passes OBC 3.1.4.2 & SB-10
- Signed CCMC #14036-R Binder
- 4.5"–5.0" 2 lb Closed-Cell SPF (R-28 to R-31 Cathedral Ceiling)
- Eliminates Roof Venting & Ice Dams
- Ready for 1/2" Drywall Thermal Barrier
2026 Cost to Insulate a Metal Roof in Ontario (Commercial Deck vs. Residential Standing-Seam)
In 2026, the cost to insulate a metal roof in Ontario ranges from $2.50 to $4.85 per sq ft ($1.15 to $1.45 per board foot) for bare CAN/ULC-S705.1 2 lb closed-cell spray foam, $4.25 to $7.50 per sq ft for our Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Thermal Barrier Package on exposed commercial warehouse and industrial steel decks, and $4.50 to $6.25 per sq ft for high-R-value (4.5" to 5.0", R-28 to R-31) unvented residential cathedral ceiling metal roofs. Compare all six 2026 Ontario metal roof assemblies below:
| Metal Roof Assembly & Building Type | 2 lb Closed-Cell SPF + Thermal Barrier Spec | 2026 Installed Cost (/sq ft) | Typical Project Total (Ontario) | Ontario Building Code Compliance |
|---|---|---|---|---|
| Agricultural Pole Barn / Quonset Metal Roof (Sweat & Frost Control) | 2.0" 2 lb Closed-Cell SPF (R-12) Direct to Steel | $2.50 – $3.45 / sq ft | $5,000 – $17,250 (2,000–5,000 sq ft) | Class 1 Vapour Seal • Stops Indoor Roof Rain |
| Commercial Metal Building Roof Deck (Standard Thermal Envelope) | 3.0" 2 lb Closed-Cell SPF (R-18) in Flutes & Purlins | $3.40 – $4.65 / sq ft | $17,000 – $46,500 (5,000–10,000 sq ft) | Monolithic Air Seal + Structural Uplift Rigidity |
| Turnkey Warehouse Steel Deck + DC315 (Full Code Occupancy Package) | 3.0"–3.5" 2 lb SPF (R-18–R-21) + 18-Mil WFT DC315 | $4.25 – $7.50 / sq ft | $23,500 – $112,500+ (5,000–15,000+ sq ft) | Passes OBC 3.1.4.2, SB-10 & CAN/ULC-S124 |
| Residential Metal Roof Cathedral Ceiling (Limited Rafter Depth) | 4.5"–5.0" 2 lb Closed-Cell SPF (R-28 to R-31) | $4.50 – $6.25 / sq ft | $4,500 – $12,500 (1,000–2,000 sq ft) | Passes OBC SB-12 Unvented Cathedral Ceiling |

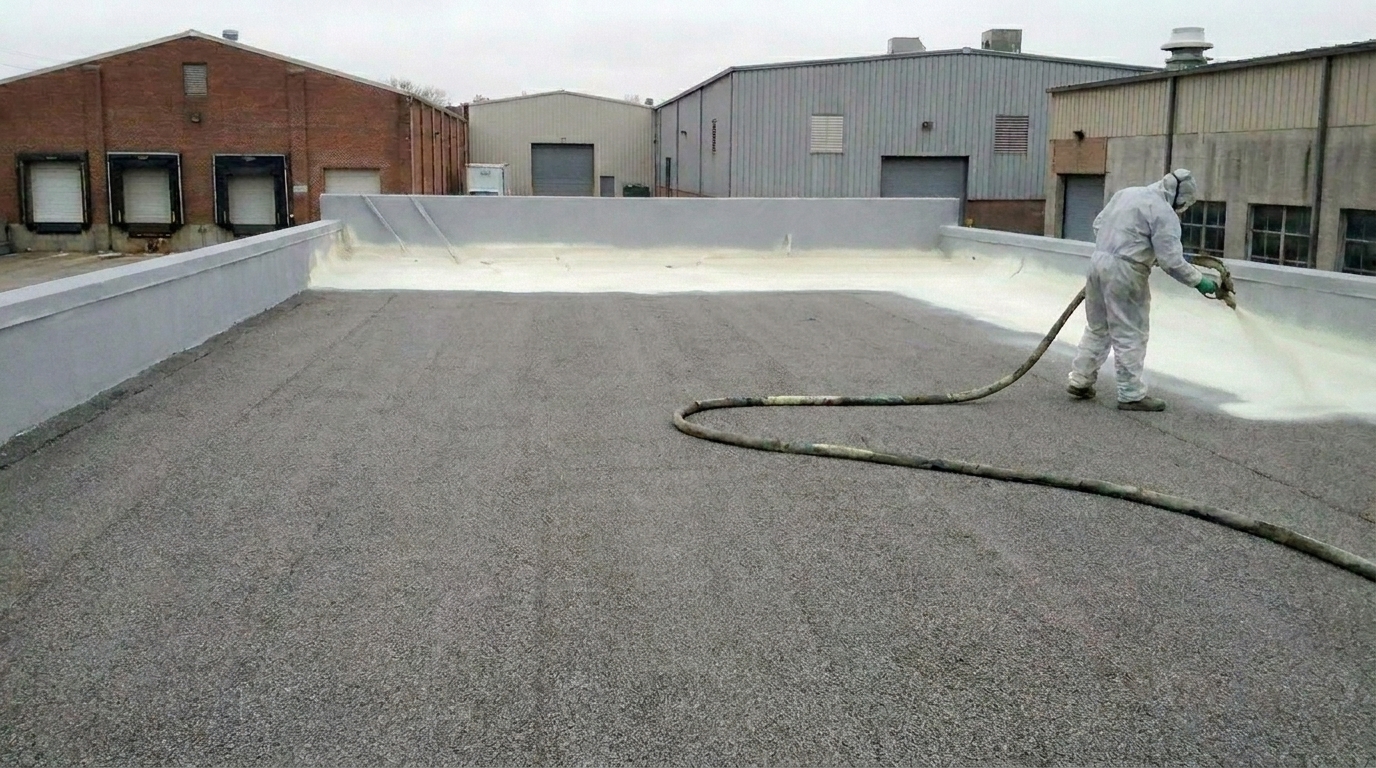

| Exterior Commercial Metal Roof Restoration (Foam + Silicone Coat) | 2.0"–3.0" High-Density SPF + 30–40 Mil Silicone UV Coat | $6.50 – $9.80 / sq ft | $32,500 – $98,000+ (5,000–10,000 sq ft) | Waterproof Seamless Membrane + UV Armor |
Why Metal Roofs Sweat and Drip in Ontario Winters — And Why Fiberglass Blankets Fail
Across Southern, Central, and Northern Ontario, outdoor temperatures routinely plunge to -18°C to -30°C on clear winter nights, while indoor commercial warehouses, auto repair bays, agricultural barns, and residential living spaces maintain +18°C to +22°C at 30% to 50% relative humidity. As documented in our metal building condensation fix guide, when warm indoor air rises toward a metal roof deck, the dew point temperature sits right around +4°C to +9°C.
If your metal roof is insulated with pinned fiberglass batts, draped vinyl-scrim blanket rolls, or rigid foam boards with taped seams, buoyant warm moisture travels effortlessly through staple holes, purlin gaps, and flute channels until it contacts the freezing underside of the metal roof panel. Within hours, three destructive failures occur:
- 1. Nocturnal Frost Accumulation & Morning "Indoor Rain": Moisture freezes solid against the sub-zero steel deck overnight. As soon as morning sunlight strikes the dark exterior metal roof—even when outdoor air is
-10°C—the steel skin warms above0°C, melting the frost layer and dumping gallons of dirty condensation water through light fixtures, ceiling tiles, and pallet racking. - 2. Hidden Purlin, Z-Girt & Fastener Corrosion: Trapped condensation saturates fiberglass blankets against structural steel C-purlins, Z-girts, and self-tapping roof screws—accelerating hidden rust, rotting wood strapping in residential roofs, and loosening roof fastener threads.
- 3. 35% to 50% Thermal Bridging Loss Through Steel Flutes: Steel conducts heat 400 times faster than air and 1,500 times faster than polyurethane foam. Draped fiberglass blankets leave hollow convection air channels inside corrugated B-deck flutes and across steel purlin flanges, slashing a nominal
R-20fiberglass blanket down to an effective whole-roof performance of justR-8 to R-10.
By contrast, spraying 2.0 inches or more of CAN/ULC-S705.1 2 lb closed-cell spray foam directly onto the clean, dry steel substrate creates a 100% monolithic bond with zero air gap. Because closed-cell foam has a water vapour permeance under 60 ng/(Pa·s·m²) at 50 mm (2.0"), it serves as a certified Class 1 vapour barrier and air barrier right at the steel interface—making it physically impossible for indoor humidity to ever touch the cold metal deck.
Step-by-Step: How to Insulate a Metal Roof Deck with 2 lb Closed-Cell Spray Foam (CAN/ULC-S705.2 Protocol)
Whether we are insulating a commercial metal building, a high-bay warehouse roof, or a residential standing-seam metal roof, Sprayfoam Solutions Toronto Inc. follows the strict National Research Council Canada / CCMC CAN/ULC-S705.2 installation standard on every project:
- Step 1 — Inspect Fastener Type (Through-Fastened Corrugated vs. Concealed-Clip Standing-Seam): On through-fastened corrugated commercial decks, agricultural barns, and structural steel B-decks, 2 lb closed-cell foam is sprayed directly to the underside of the metal panels—locking screws in place and increasing wind-uplift resistance by up to
250%. On long-span architectural standing-seam roofs with concealed sliding clips, we verify whether the roof is installed over solid OSB/plywood sheathing (spray directly to the underside of the wood deck) or open purlins requiring a slip-sheet / thermal expansion plane so thermal expansion of the metal panels is never restricted. - Step 2 — Degrease Mill Oil, Verify <18% Moisture & Check Steel Temperature (≥10°C): New galvanized and Galvalume metal roof panels often carry light rolling oils from the factory mill, while existing roofs may hold condensation film or dust. Our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers solvent-wipe oily flutes, verify dry substrate conditions (
<18%moisture on wood nailers;0%condensation on steel with surface temperature at least3°Cabove the indoor dew point and≥10°C), and bag all ESFR sprinkler heads, lighting, and HVAC units. - Step 3 — Spray Controlled 0.5" Tack Pass Followed by ≤2.0" Structural Lifts: Spraying too much foam onto cold metal in a single pass traps exothermic reaction heat and can warp thin-gauge metal panels or cause foam scorching. We apply a precision
0.5" to 1.0"flash/tack pass into all flute valleys, purlin webs, and ridge caps to lock in adhesion, followed by smooth1.5" to 2.0"lifts until the targetR-18 to R-31depth is achieved. - Step 4 — Install the Mandatory OBC 15-Minute Thermal Barrier (18-Mil DC315 or 1/2" Drywall): Under Ontario Building Code Division B Section 3.1.4.2 and Section 9.10.17.10, spray foam must never remain exposed inside an occupied building. In residential homes,
1/2" gypsum drywallover ceiling strapping completes the assembly. In commercial warehouses, shops, and metal buildings, we apply 18 mils WFT (12 mils DFT) of IFTI DC315® intumescent thermal barrier coating directly over the cured foam.
Ontario Building Code R-Value & Thermal Barrier Rules for Metal Roofs (OBC SB-10, SB-12 & Section 3.1.4.2)
Insulating a metal roof in Ontario requires meeting two separate parts of the Ontario Building Code: Energy Efficiency R-Value Requirements (Supplementary Standard SB-10 for commercial/industrial Part 3 buildings and SB-12 for residential Part 9 homes) and Foamed Plastic Fire Protection Requirements (Section 3.1.4.2 and Section 9.10.17.10).
Residential Unvented Metal Roof Assemblies (Cathedral Ceiling R-28–R-31 vs. Attic R-50–R-60)
Homeowners installing a residential standing-seam or steel-tile metal roof in Ontario must distinguish between an open attic and an unvented cathedral ceiling (see our vaulted & cathedral ceiling spray foam guide). Under Ontario Building Code SB-12, full open residential attics require R-50 to R-60 (8.5" to 10" of 2 lb closed-cell foam when converting to a conditioned unvented attic, or air-sealing the attic floor plane). By contrast, R-28 to R-31 (4.5" to 5.0" of 2 lb closed-cell spray foam) applies strictly to cathedral ceilings and flat roofs where 2x6 or 2x8 rafter depth physically limits insulation thickness. Spraying 4.5" to 5.0" of 2 lb closed-cell foam directly to the underside of the roof sheathing beneath a residential metal roof eliminates ridge/soffit vents, stops winter ice dams (0 heat loss to the metal roof), and dampens rain and hail noise by up to 50% to 70%.

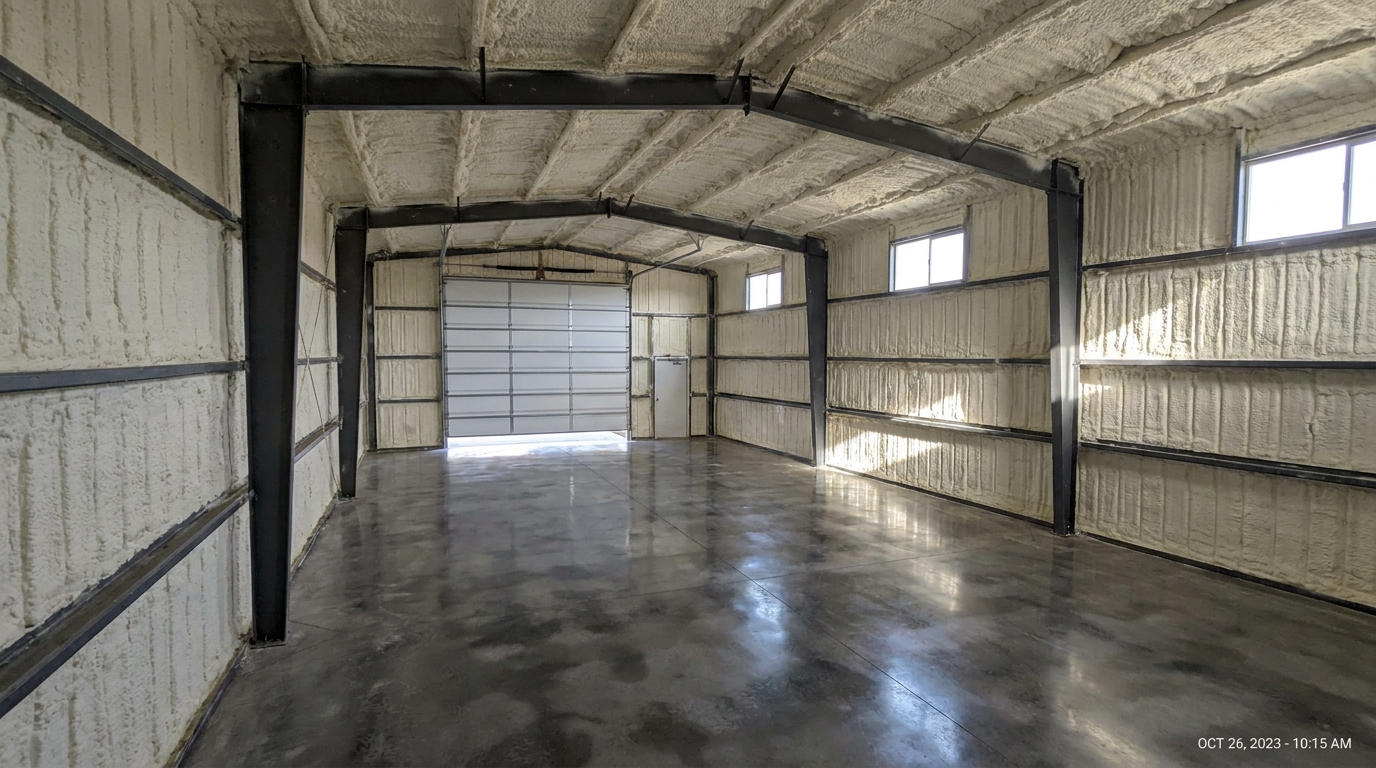

Commercial Metal Roof Decks & Our Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Package
On commercial warehouses, manufacturing facilities, aircraft hangars, and retail plazas, hanging 1/2" drywall across high-bay corrugated steel roof trusses is structurally heavy and costs $8.50 to $13.50/sq ft. Instead, general contractors book our Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Thermal Barrier Package (detailed in our 2026 Turnkey Warehouse Spray Foam & DC315 Cost Guide). After spraying 2.5" to 3.5" (R-15 to R-21+) of approved closed-cell foam (BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals — Low-VOC HFO Blown), our IFTI Certified airless crew applies 18 mils WFT (12 mils DFT) of IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings—saving 20% to 30% on lift rentals, poly masking, and project schedule.
Single-source insulated & fire-rated commercial steel deck.
Monolithic flute fill + 12-mil DFT intumescent topcoat.
Class 1 vapour barrier + 15-minute thermal barrier.
Designed for commercial warehouses, industrial bays, and metal buildings across the GTA. One turnkey crew stages the scissor lifts, masks ESFR sprinklers once, sprays 3.0"–3.5" of 2 lb closed-cell foam to stop steel deck condensation, and applies 18 mils WFT IFTI DC315 in Bright White or Charcoal—delivering a signed Municipal Inspector Binder.
Interior Under-Deck Spray Foam vs. Exterior Roof Foam + Elastomeric Coating vs. Fiberglass Blankets
Facility managers and property owners evaluating warehouse insulation costs in Ontario or metal roof retrofits must decide whether to insulate the interior underside of the metal deck or apply an exterior spray foam and elastomeric roof coating system. Below is our 2026 engineering comparison across all four methods:
| Comparison Metric | Interior 2 lb SPF + 18-Mil DC315 (Turnkey) | Residential Interior 2 lb SPF + 1/2" Drywall | Exterior Roof SPF + 35-Mil Silicone Coating | Pin-On Vinyl Fiberglass Blanket / Batts |
|---|---|---|---|---|
| 2026 Installed Price (/sq ft) | $4.25 – $7.50 / sq ft (Turnkey Foam + DC315) | $4.50 – $6.25 / sq ft (Foam Pass Only) | $6.50 – $9.80 / sq ft (Foam + Silicone) | $2.75 – $4.50 / sq ft (Prone to Sweating) |
| Stops Interior Roof Sweating | 100% — Monolithic Class 1 Vapour Seal | 100% — Zero Air Gap Against Deck | Yes — Warms Steel Deck Above Dew Point | No — Humid Air Condenses Behind Batts |
| Thermal Resistance (R-Value) | R-15 to R-21+ (2.5"–3.5" 2 lb SPF) | R-28 to R-31 (Cathedral) / R-50–R-60 (Attic) | R-12 to R-18+ (Plus 85% Solar Reflectance) | Nominal R-19 drops to Effective R-8–R-10 |
| Fire Code Compliance (OBC) | CAN/ULC-S124 (CCMC #14036-R DC315) | 1/2" Gypsum Drywall (OBC 9.10.17.10) | Class A Exterior Roof Rating (UL 790) | Exposed Vinyl Scrim Often Flagged by Fire Marshal |
| Structural & Acoustic Benefit | Adds 250% Uplift Strength + Bright White Ceiling | Cuts Rain/Hail Noise by 50%–70% | Seals leaking exterior seams & fasteners | Sags over time; zero structural rigidity |
Same-Week Commercial & Residential Metal Roof Rig Dispatch Across Toronto, the GTA & Ontario
Every commercial warehouse deck, metal building, agricultural Quonset, and residential cathedral roof is insulated by Sprayfoam Solutions Toronto Inc. using Caliber Certified (CAN/ULC-S705.2 Licensed) Installers and IFTI Certified DC315 fire coating crews with $0 surrounding GTA travel fee:
Check your ballpark at /price-chat or send roof plans to verify corrugated vs. standing-seam clip requirements.
We stage scissor lifts, bag ESFR sprinklers/lights, solvent-wipe mill oil, and verify steel temperature (≥10°C).
Precision 0.5" tack coat followed by ≤2.0" lifts of 2 lb closed-cell SPF (R-18 to R-31) for a Class 1 vapour seal.
For exposed commercial decks, we spray 18 mils WFT IFTI DC315 after a 24h cure and issue your CCMC #14036-R binder.
Select your metal roof insulation service hub or local Ontario municipality below for 2026 per-square-foot pricing and same-week dispatch:
Frequently Asked Questions
In 2026, insulating a metal roof with 2 lb closed-cell spray polyurethane foam (CAN/ULC-S705.1) in Ontario costs $2.50 to $4.65 per sq ft for 2.0" to 3.0" condensation and thermal control on agricultural barns and metal shops, $4.25 to $7.50 per sq ft for our Turnkey 2 lb Closed-Cell SPF + 18-Mil IFTI DC315 Thermal Barrier Package on commercial warehouses, and $4.50 to $6.25 per sq ft for 4.5" to 5.0" (R-28 to R-31) residential cathedral ceilings. Contact Sprayfoam Solutions Toronto Inc. at (647) 333-3626 or check your price in 60 seconds at spfsolutions.ca/price-chat.
Yes—on through-fastened corrugated steel roof decks, structural steel B-decks, Quonset huts, and residential metal roofs mounted over plywood/OSB deck sheathing, CAN/ULC-S705.1 2 lb closed-cell spray foam is sprayed directly to the clean, dry underside (<18% moisture, ≥10°C steel temperature). This eliminates the air space where condensation forms. On architectural standing-seam roofs with concealed sliding clips over open purlins, our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers incorporate a slip-plane membrane so the metal panels can expand and contract freely.
To permanently stop interior metal roof condensation ("indoor rain"), a minimum of 2.0 inches (R-12) of 2 lb closed-cell spray foam is required so the foam achieves its certified Class 1 vapour barrier rating (<60 ng/Pa·s·m²). For full Ontario Building Code thermal compliance, heated commercial warehouse roof decks typically require 3.0" to 3.5" (R-18 to R-21) under OBC SB-10, residential cathedral ceilings with limited rafter depth require 4.5" to 5.0" (R-28 to R-31) under OBC SB-12, and full open residential attics require R-50 to R-60 (8.5" to 10").
Yes. Under 2026 Ontario Building Code Division B Section 3.1.4.2, exposed spray foam inside any occupied commercial warehouse, manufacturing plant, retail unit, or industrial bay must be protected by a 15-minute thermal barrier. Sprayfoam Solutions Toronto Inc. provides a single-source Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Thermal Barrier Package ($4.25–$7.50/sq ft, or $1.75–$3.25/sq ft for DC315 fire coating cost rescue alone). Call (647) 333-3626 or visit spfsolutions.ca/price-chat.
Open-cell 0.5 lb spray foam and fiberglass batts are vapour-permeable (Class 3 or unrated vapour permeance). Because metal roofing panels are 100% vapour-impermeable (0.0 perms) on the exterior, moisture from indoor air diffuses straight through open-cell foam or fiberglass, condenses into liquid water and frost against the freezing underside of the metal roof, and becomes trapped—causing rusted fasteners, sagging insulation, and rotted roof purlins. Only 2 lb closed-cell spray foam (CAN/ULC-S705.1) blocks moisture vapour from reaching the cold metal.
Every metal roof project is installed by our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers using BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals — Low-VOC HFO Blown, paired on commercial decks with IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings. Once cured, the assembly is chemically stable, fully cured, and odourless.
No—when applied to a structurally sound metal roof, 2 lb closed-cell spray polyurethane foam has a closed-cell content exceeding 90% to 95%, meaning it does not wick or absorb water like fiberglass blankets do, and it actually seals around through-fastened screw tips to prevent wind-driven rain intrusion. If an older commercial metal roof already has deteriorated exterior screw washers or rusting seams, we can either tighten/replace the exterior fasteners prior to interior foaming or apply an exterior high-density roof foam + 35-mil silicone membrane.
General contractors, facility managers, farmers, and homeowners can get a $250 Credit on Your Estimate and check exact 2026 square-foot pricing in 60 seconds at spfsolutions.ca/price-chat (No Site Visit Required), submit architectural drawings via our General Contractor Bid Desk, or call Sprayfoam Solutions Toronto Inc. directly at (647) 333-3626 for same-week dispatch across Toronto, the GTA, and Ontario.
