Underground Parkade Ceiling & Concrete Slab Soffit Spray Foam + Fire Coating Cost in Toronto & Ontario (2026)
Underground Parkade Ceiling & Concrete Slab Soffit Spray Foam + Fire Coating Cost in Toronto & Ontario (2026): 2026 Ontario Overview & Code Essentials
Across Toronto, Mississauga, Vaughan, Markham, Oakville, and Hamilton, one of the most common thermal complaints in mid-rise condominiums, mixed-use retail plazas, commercial office towers, and institutional buildings is freezing ground-floor concrete slabs and vehicle exhaust infiltration directly above the P1 underground parking garage, loading dock, or drive-through porte-cochère. When traditional pin-on mineral wool or fiberglass blanket boards sag, absorb damp de-icing salt humidity, and leave open convecting air gaps around post-tensioned drop panels and cast-iron plumbing traps, cold -15°C parkade air siphons heat straight out of the suites above while violating 2026 Ontario Building Code Supplementary Standard SB-10.
That is why Ontario developers, condominium property managers, and general contractors specify a Single-Source Turnkey 2 lb Closed-Cell Spray Foam + 18-Mil DC315 Fire Coating Package installed by Sprayfoam Solutions Toronto Inc. As a Single-Source Certified Spray Foam & Fire Coating Contractor with Caliber Certified (CAN/ULC-S705.2 Licensed) Installers and certified DC315 thermal barrier and cementitious fireproofing crews, we seal overhead concrete soffits, drop capitals, and mechanical pipe hangers in one unified mobilization. Get a $250 Credit on Your Estimate — Check Your Price in 60 Seconds (/price-chat) • No Site Visit Required, or send your P1 reflected ceiling plan to our General Contractor & B2B Estimating Desk.
Compare our 3 commercial parkade soffit, loading dock, and drive-under concrete slab pricing tiers before checking your exact square-foot price in 60 seconds:
- 3.5"–4.0" 2 lb Closed-Cell SPF (R-21 to R-24) + 18-Mil WFT IFTI DC315
- Stops Freezing Floors & Carbon Monoxide Fumes
- Includes $250 Estimate Credit
- 4.0"–5.0" 2 lb Closed-Cell SPF (R-24 to R-31 OBC SB-10) + 18-Mil WFT Bright White DC315 (or Monokote Z-106)
- Full CCMC #14036-R & DFT Sign-Off Binder
- Multi-Rig CAN/ULC-S705.1 2 lb SPF + 3,000 PSI Airless DC315 / Medium-Density Z-106
- Full Pipe-Hanger & Drop-Panel Encapsulation
- Priority GC Tender Pricing
2026 Underground Parkade Soffit SPF + DC315 / Z-106 Cost Per Sq Ft Table (Ontario)
In 2026, insulating an overhead concrete parkade ceiling or exterior structural soffit in Toronto and Ontario requires two code-mandated layers: first, 3.5" to 5.0+" of CAN/ULC-S705.1 2 lb closed-cell spray polyurethane foam ($3.25 to $5.50/sq ft) to achieve R-21 to R-31 continuous thermal resistance and an air/fume barrier; second, a certified 15-minute thermal barrier (CAN/ULC-S124) such as 18-mil WFT IFTI DC315® ($1.75 to $3.25/sq ft) or GCP Monokote® Z-106 cementitious fireproofing under Ontario Building Code Section 3.1.4.2:
| Parkade Soffit / Concrete Slab Assembly | Technical Spec (CAN/ULC-S705.1 + S124) | 2026 Turnkey Rate (/sq ft) | Typical Commercial Project Total | Ontario Building Code Status |
|---|---|---|---|---|
DC315 Thermal Barrier Only(Over Existing Bare Parkade Foam) | 18–24 Mils WFT (12–16 Mils DFT) IFTI DC315® | $1.75 – $3.25 / sq ft | $4,800 – $22,000(2,000–8,000 sq ft) | Clears Municipal Fire Marshal Order( OBC 3.1.4.2) |
R-21 Parkade Soffit Package(Semi-Heated Garage Below Commercial Lobby) | 3.5" 2 lb Closed-Cell SPF + 18-Mil WFT DC315 | $5.25 – $6.50 / sq ft | $26,250 – $65,000(5,000–10,000 sq ft) | Monolithic Air/Exhaust Seal + Class 1 Vapour Barrier |
R-24 OBC SB-10 Standard Soffit(Unheated P1 Garage Below Ground-Floor Suites) | 4.0" 2 lb Closed-Cell SPF + 18-Mil WFT DC315 | $5.65 – $7.15 / sq ft | $45,200 – $107,250(8,000–15,000 sq ft) | Passes OBC SB-10 Mass Floor Above Parking Code |
R-31 High-Performance Exterior Soffit(Drive-Under Porte-Cochère / Open Loading Bay) | 5.0" 2 lb Closed-Cell SPF + 18-Mil WFT DC315 | $6.40 – $8.25 / sq ft | $38,400 – $123,750(6,000–15,000 sq ft) | Passes Exterior Cantilever & SB-10 Zone 5/6 Spec |
Heavy-Duty Parkade SPF + Monokote Z-106(High-Impact Loading Dock / Mechanical Soffit) | 3.5" – 4.5" 2 lb SPF + 22 lb Medium-Density Z-106 | $6.75 – $9.25 / sq ft | $54,000 – $185,000+(8,000–20,000+ sq ft) | High-Bond Portland Cement Thermal Barrier |
Insulating Concrete Slabs Below Ground-Floor Retail, Condo Suites & Lobbies (Stopping Cold Floors & Exhaust Fumes)
In a typical Toronto mixed-use condo or commercial building, the P1 underground parking garage operates near outdoor ambient temperatures whenever the overhead garage door cycles open during winter rush hours, while the ground-floor retail units, medical clinics, and residential suites immediately above are heated to 21°C. Because reinforced concrete has almost zero thermal resistance (only R-0.08 per inch), an uninsulated or poorly insulated 8-inch concrete transfer slab acts as a massive radiator dumping building heat into the garage while allowing carbon monoxide (CO), diesel particulates, and cold drafts to migrate upward through slab penetrations. Spraying 3.5" to 5.0" of 2 lb closed-cell spray polyurethane foam directly onto the concrete underside creates a 100% seamless thermal, air, and soil-gas/fume barrier (<0.02 L/s·m² @ 75 Pa) that wraps tightly around every cast-iron drain trap, post-tensioned drop panel, and shear-wall perimeter.
2026 Worked Underground Parkade Examples (3,000 Sq Ft Loading Bay vs. 12,000 Sq Ft Condo P1 vs. 30,000 Sq Ft Commercial Deck)
Below are three transparent 2026 worked estimates comparing our Single-Source Turnkey 2 lb SPF + 18-Mil DC315 Package on concrete parkade ceilings against hiring two separate insulation and fireproofing sub-trades:
| Worked Parkade / Soffit Project Scope | Overhead Concrete Surface Area | Turnkey Assembly Spec (SB-10 + OBC 3.1.4.2) | 2 Separate Sub-Trades Bid | Our Single-Source Turnkey Price |
|---|---|---|---|---|
3,000 Sq Ft Condo Ramp & Loading Bay Soffit(Below Ground-Floor Lobby & Amenity Room) | 3,000 sq ft(12–16 ft clear height) | 4.0" 2 lb Closed-Cell SPF (R-24) + 18-Mil WFT Bright White DC315 | $23,500 – $29,400(Duplicate masking & lift fees) | $17,850 – $22,200(Saves $5,650 – $7,200) |
12,000 Sq Ft Mid-Rise P1 Parking Ceiling(Below Ground-Floor Retail & Townhouse Suites) | 12,000 sq ft(10–14 ft clear height • Heavy MEP piping) | 4.0" 2 lb Closed-Cell SPF (R-24) + 18-Mil WFT DC315 + Elcometer DFT Log | $88,000 – $109,000(Split schedule & pipe-wrap upcharges) | $66,000 – $82,800(Saves $22,000 – $26,200) |
30,000 Sq Ft Commercial Tower P1 Deck(Full Transfer Slab + Drop Capitals + Perimeter Drop) | 30,000 sq ft(Multi-zone scissor-lift staging) | 4.5" 2 lb Closed-Cell SPF (R-27) + 18-Mil WFT DC315 + Full Engineering Binder | $215,000 – $268,000(3–4 week multi-trade bottleneck) | $154,500 – $195,000(Saves $60,500 – $73,000) |

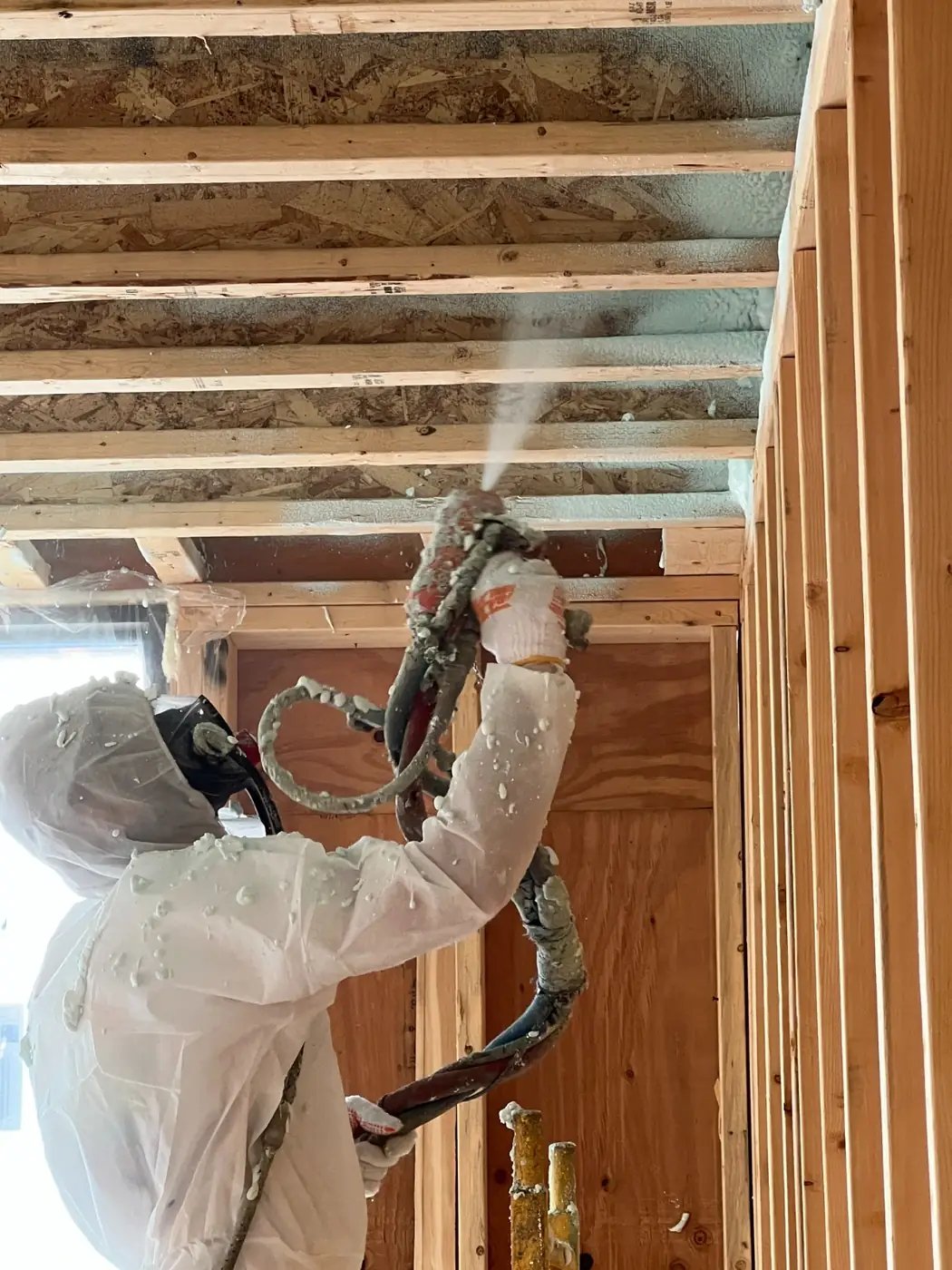

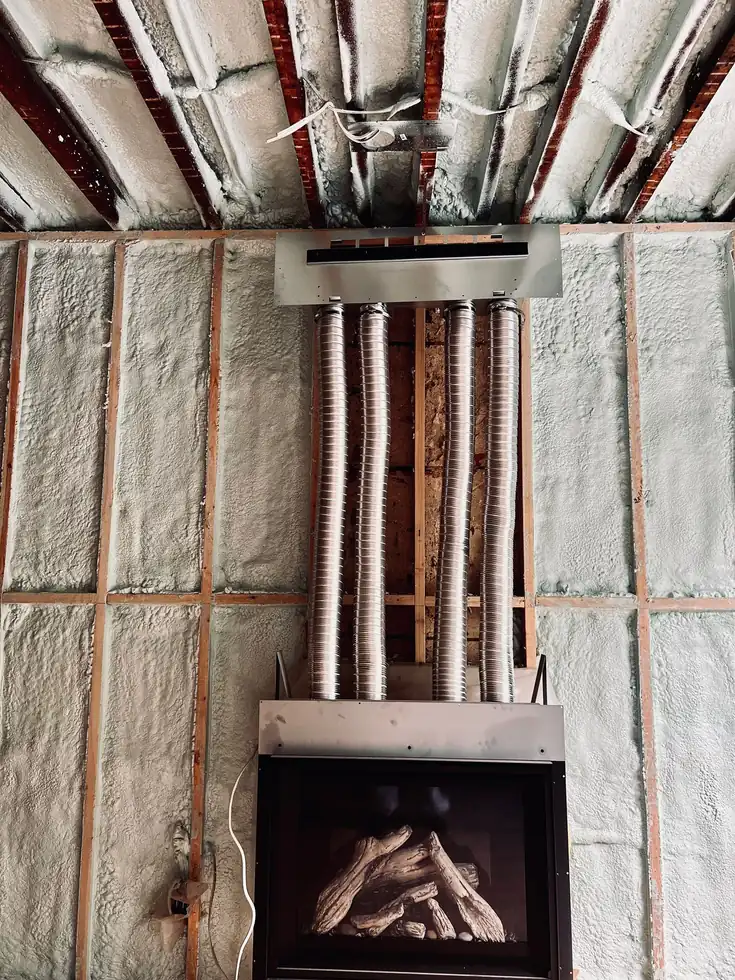

![5" (R31) of 2lb closed-cell spray foam on flat ceiling joists and 3.5" (R22) on exterior wall studs in Toronto (Forest Hill & Rosedale) [JOB-2023-07-22-01]](/images/jobs/closed-cell-spray-foam/closed-cell-spray-foam-toronto-job-2023-07-22-01-50.webp)
Ontario Building Code SB-10 (R-24 to R-31 Soffit) & Section 3.1.4.2 Fire Protection Requirements
Under 2026 Ontario Building Code Supplementary Standard SB-10 (Energy Efficiency Requirements for Buildings Exceeding Part 9)—referencing ASHRAE 90.1 and the National Energy Code of Canada for Buildings (NECB)—mass floors located above unheated parking garages or open exterior drive-throughs in Southern and Central Ontario (Climate Zones 5 and 6) must achieve R-20 to R-30+ continuous insulation (RSI 3.52 to RSI 5.28). Furthermore, under OBC Division B Section 3.1.4.2 (Protection of Foamed Plastics), all spray polyurethane foam applied inside a Part 3 underground parkade must be covered by a certified 15-minute thermal barrier (CAN/ULC-S124) evaluated by the Canadian Construction Materials Centre (CCMC) at NRC Canada.

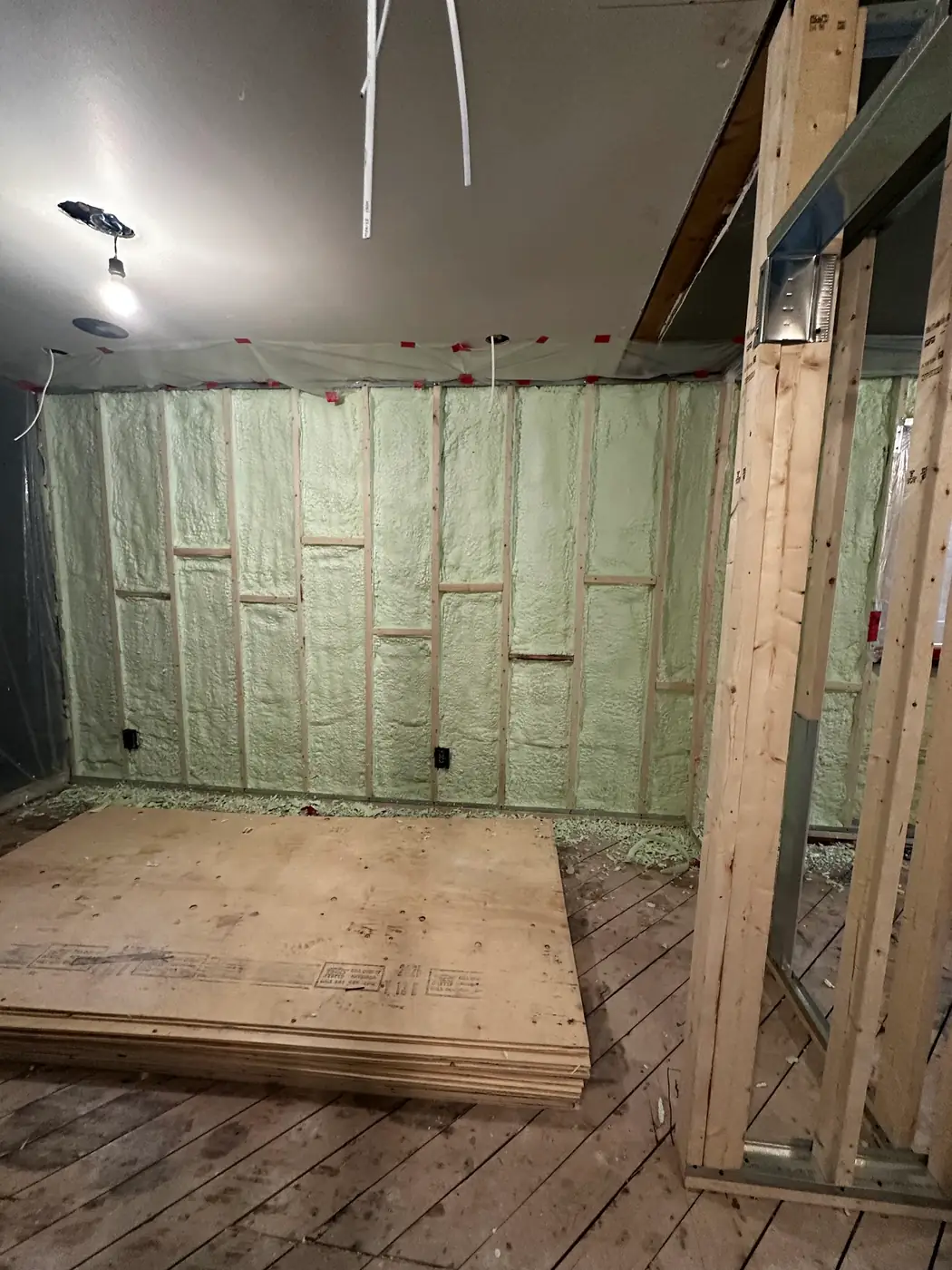

![3.5" (R22) of 2lb closed-cell spray foam across exterior 2x6 wood stud cavities in Mississauga (Lorne Park & Port Credit) [JOB-2025-05-29-01]](/images/jobs/closed-cell-spray-foam/closed-cell-spray-foam-toronto-job-2025-05-29-01-1.webp)
Degreased concrete slab (<18% moisture) & masked pipes.
Individually bagged sprinkler heads & wrapped valves.
Bonds permanently to poured concrete & precast tees.
Underground parkade ceilings are congested with cast-iron sanitary cleanouts, dry-pipe fire sprinklers, EV charger conduits, and concrete form-release oil residue. Before spraying, our Caliber Certified crew pressure-cleans/degreases form-oil spots, verifies concrete substrate moisture (<18%) and temperature, and individually masks every sprinkler head, cleanout cap, CO sensor, and security camera.
6 Critical On-Site Trade Rules for Overhead Concrete Parkade Slab Spray Foam & Fire Coating
Executing an overhead concrete soffit retrofit in an active condo parkade or new commercial tower across the GTA requires specialized concrete physics and MEP coordination. Here are the 6 critical on-site trade rules our commercial division follows:
- 1. Remove Concrete Form-Release Oil & Verify Slab Moisture (
<18%) Before Spraying: Freshly stripped poured-in-place concrete slabs and precast double-tees frequently carry residual petroleum or vegetable form-release oils that prevent chemical adhesion. We test adhesion panels, degrease contaminated zones, and verify concrete dryness before applying the first pass ofCAN/ULC-S705.12 lb closed-cell foam. - 2. Never Leave Plumbing Cleanout Caps, Valve Handles, or Sprinkler Heads Buried in Foam: Underground P1 ceilings carry the building’s horizontal storm/sanitary mains and dry-pipe sprinkler grids. Our crew wraps brass cleanout plugs, isolation valves, and Victaulic couplings in removable protective sleeves with visible identification tags so plumbers and sprinkler fitters retain 100% maintenance access.
- 3. Insulate 24" to 48" Down Concrete Drop Capitals, Shear Walls & Column Tops (
Thermal Flanking Rule): Concrete columns and perimeter foundation walls act as giant thermal fins conducting winter cold up into the ground-floor slab even if the flat ceiling is insulated. To stop perimeter floor edge freezing, we return the2 lb closed-cell SPF + 18-mil DC315assembly24" to 48"down the top of every column capital and perimeter beam. - 4. Respect the 24-Hour Exothermic Cure Window & Dew-Point Control Before Topcoating: Underground garages in Toronto can trap damp, humid air when cars bring in snow or rain. We deploy high-CFM air movers and indirect-fired heaters to keep concrete and ambient temperatures
≥10°C (50°F)(≥3°Cabove dew point) and enforce a full 24-hour foam cure window before spraying water-based IFTI DC315 thermal barrier coating. - 5. Specify Bright White DC315 to Transform Dark Parkades & Cut LED Wattage: Dark gray mineral wool or raw concrete swallows overhead lighting and makes underground parking garages feel unsafe. Specifying Bright White IFTI DC315® (
or Ice Grey) across the parkade soffit reflects80%+of LED fixture output while satisfyingCAN/ULC-S124fire code. - 6. Upgrade Garbage-Truck & Loading-Dock Bays to Medium-Density
Monokote Z-106: In high-abuse loading docks where waste bins or tall trucks may scrape the ceiling, we can transition seamlessly from18-mil DC315in the passenger parking bays to medium-density Portland cement Monokote® Z-106 (22 lb/ft³) in the loading dock.

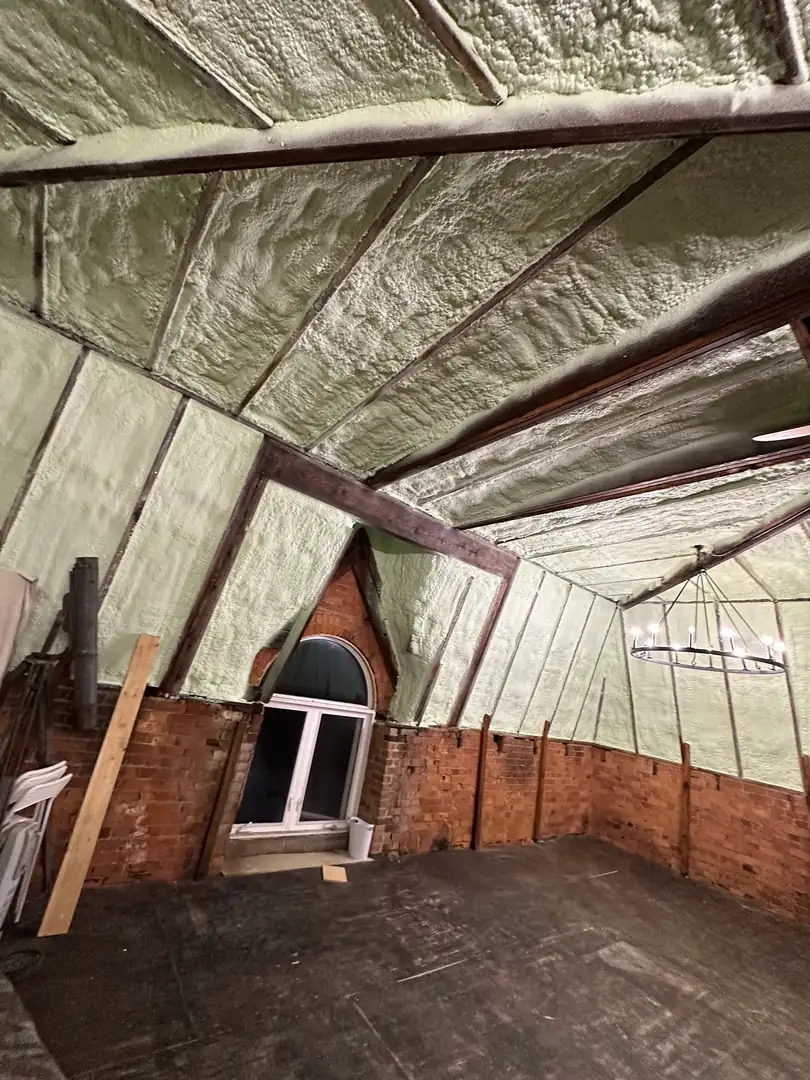

![5" (R31) of 2lb closed-cell spray foam on a sloped cathedral ceiling roof deck in Brampton (Castlemore & Credit Valley) [JOB-2026-03-10-01]](/images/jobs/cathedral-ceiling-spray-foam/cathedral-ceiling-spray-foam-toronto-job-2026-03-10-01-11.webp)
Turnkey 2 lb Spray Foam + DC315 vs. Pin-On Mineral Wool / Fiberglass Boards on Parkade Ceilings (2026 Comparison)
Developers and condominium reserve-fund engineers pricing commercial warehouse and parkade insulation in Ontario frequently compare our monolithic 2 lb Closed-Cell SPF + 18-Mil DC315 system against mechanically pinned mineral wool boards (e.g., 4"–6" foil/scrim-faced mineral wool impaled on weld-pins or concrete anchors). Here is how the two systems perform over a 20-year lifecycle:
| Engineering & Lifecycle Metric | Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 | Pin-On Mineral Wool / Fiberglass Soffit Board | Sprayed Cellulose / Loose Fiber |
|---|---|---|---|
2026 Installed Cost(/sq ft) | $5.25 – $8.25 / sq ft(Complete Turnkey R-21 to R-31) | $5.50 – $9.50 / sq ft(Board + Pins + Taped Scrim) | $3.25 – $5.00 / sq ft(Absorbs moisture & falls) |
Air & Vehicle Exhaust Fume Seal | 100% Monolithic Air & CO Fume Barrier( CAN/ULC-S742) | Thousands of board seams & hanger cutouts leak cold air | Zero air-barrier rating; permeable to exhaust |
Fit Around MEP Pipes & Hangers | Encapsulates every hanger rod, P-trap & drop panel | Leaves 1" – 3" uninsulated air gaps around every pipe & beam | Cannot wrap cleanly around plumbing traps |
Moisture, Salt & Sagging Resistance | Closed-cell waterproof core ( <1.5 perms) • Never sags | Foil scrim tears; wet boards sag off pins over parked cars | Soaks up high garage humidity and delaminates |
OBC 3.1.4.2 / Fire Compliance | Certified CAN/ULC-S124 ( CCMC #14036-R) + DFT Binder | Noncombustible core, but exposed scrim tape peels | Loses fire retardant when exposed to damp air |
Garage Aesthetics & Light Output | Seamless Bright White (or Charcoal) washable shell | Patchwork of silver foil tape, rusted pins & torn seams | Rough, dusty gray texture that sheds onto cars |
Same-Week Commercial Mobile Rig & 3,000 PSI Airless Fleet Dispatch Across Toronto & Ontario
Every underground parkade soffit, loading dock ramp, and commercial warehouse insulation project is installed by our Caliber Certified (CAN/ULC-S705.2 Licensed) & IFTI Certified Fire Coating Installers with $0 surrounding GTA travel fee across Toronto, Mississauga, Brampton, Vaughan, Markham, Oakville, Burlington, Hamilton, Pickering, Ajax, Whitby, Oshawa, Richmond Hill, and Barrie:
Get an instant ballpark at /price-chat or send P1 reflected ceiling drawings for a fixed-price R-24/R-31 SPF + DC315 takeoff.
We phase parking bays, mask all sprinkler heads, plumbing cleanouts, conduits, and slabs, and verify concrete dryness.
Heated-reactor application of 2 lb closed-cell spray foam across concrete slabs, drop panels, and perimeter column tops.
3,000 PSI airless pass of 18-mil WFT Bright White DC315, Elcometer DFT logging, cleanup, and CCMC #14036-R binder handover.
Frequently Asked Questions
In 2026, a single-source turnkey underground parkade ceiling and concrete soffit package (3.5"–5.0" of 2 lb closed-cell spray foam + 18-mil WFT IFTI DC315® thermal barrier) in Toronto and Ontario costs $5.25 to $8.75 per sq ft installed ($3.25–$5.50/sq ft for the closed-cell foam and $1.75–$3.25/sq ft for the DC315 fire coating). Mid-size P1 parkades (5,000–20,000 sq ft) average $5.25–$7.45/sq ft, while large commercial decks (20,000–75,000+ sq ft) scale down to $4.95–$6.65/sq ft. Call Sprayfoam Solutions Toronto Inc. at (647) 333-3626 or check your exact price in 60 seconds at spfsolutions.ca/price-chat.
Under 2026 Ontario Building Code Supplementary Standard SB-10 (ASHRAE 90.1 / NECB), mass concrete floors separating heated ground-floor retail, residential suites, or lobbies from unheated underground parking garages or open drive-throughs in Southern Ontario typically require R-24 to R-31 continuous thermal insulation, achieved with 4.0" to 5.0" of CAN/ULC-S705.1 2 lb closed-cell spray polyurethane foam (R-6.0 per inch).
Mechanically pinned mineral wool boards leave 1" to 3" unsealed gaps around every plumbing P-trap, threaded hanger rod, and concrete drop panel—allowing freezing garage air and vehicle carbon monoxide exhaust fumes to bypass the insulation and chill the concrete slab directly. 2 lb closed-cell spray foam + 18-mil IFTI DC315 forms a 100% monolithic air, vapour, and thermal seal (CAN/ULC-S742) that never sags, absorbs road-salt moisture, or drops rusted weld-pins onto parked vehicles.
Our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers apply BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals, paired with IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings. For high-impact loading docks and structural beams, we also install Isolatek Cafco® 300, GCP Monokote® MK-6® / Z-106, Carboline Pyrocrete® / Nullifire® SC902, Sherwin-Williams Firetex® & other ULC-listed structural fireproofing systems.
Yes. Under Ontario Building Code Division B Section 3.1.4.2, foamed plastic insulation in a Part 3 underground parkade must be protected by a 15-minute thermal barrier. IFTI DC315® (CCMC #14036-R) applied at 18 mils Wet Film Thickness (12 mils Dry Film Thickness) passes full-scale CAN/ULC-S124, NFPA 286, and UL 1715 testing. Sprayfoam Solutions Toronto Inc. ((647) 333-3626 • spfsolutions.ca/price-chat) provides the complete signed CCMC #14036-R + calibrated Elcometer DFT log + CAN/ULC-S705.2 daily worksheet binder for municipal occupancy sign-off.
In occupied condominium or commercial garages, we phase the work in isolated parking zones (15 to 30 stalls at a time). Before spraying a drop of foam, our crew drapes floor-to-ceiling polyethylene containment curtains, covers floors, individually bags every fire sprinkler head, CO detector, and light fixture, and sleeves all brass plumbing cleanout caps so building maintenance staff retain full access.
Poured concrete columns and shear walls act as massive thermal bridges that conduct freezing garage temperatures straight up into the ground-floor floor slab even when the horizontal ceiling is insulated. Returning our 2 lb closed-cell spray foam + 18-mil DC315 assembly 24" to 48" down the top of every column capital and perimeter wall cuts off this flanking heat-loss path.
Get an instant 2026 ballpark estimate and claim your $250 Estimate Credit in 60 seconds at spfsolutions.ca/price-chat (No Site Visit Required), upload reflected ceiling plans through our General Contractor Bid Desk, or call Sprayfoam Solutions Toronto Inc. directly at (647) 333-3626 for same-week mobile rig dispatch across Toronto, the GTA, and Ontario.
