2026 Per-Column & Per-Linear-Foot Cost Table: Intumescent Fire Coating vs. Multi-Layer 5/8" Type X Drywall Boxing
When pricing intumescent fire coating for structural steel in Toronto against gypsum board enclosures, drywall quotes often look deceptively cheap until you add up light-gauge steel furring channels (20-gauge or 25-gauge hat track), clip fabrication around beam flanges, one to three layers of 5/8" Type X fire-rated gypsum board (ULC Design W400 / X500 series), fire-taping every joint, corner bead installation, priming, and painting. Here is the true 2026 side-by-side installed cost comparison across Ontario:
| Structural Steel Member & Fire Rating | Intumescent Coating Spec (CAN/ULC-S101) | 2026 Intumescent Installed Cost | Framed 5/8" Type X Drywall Boxing Cost | Net Cost & Space Advantage |
|---|---|---|---|---|
HSS 152x152 (6"x6") Hollow Column — 1-Hr(10 ft Height • ~20 sq ft Steel) | 35 – 55 Mils DFT Water-Based / Hybrid Intumescent | $185 – $290 / column($8.50 – $11.50 / sq ft) | $440 – $680 / column(Framing + 1–2x Type X + Corner Bead + Paint) | Saves $255 – $390/col + Keeps 6"x6" Profile |
Wide-Flange W250x49 (10"x8") Column — 1-Hr(12 ft Height • ~48 sq ft Steel) | 28 – 48 Mils DFT ULC Z611 / X701 Design | $310 – $520 / column($6.25 – $10.85 / sq ft) | $690 – $1,050 / column(Custom web furring + 4 corner beads + tape) | Saves $380 – $530/col + Zero Floor Area Loss |
Wide-Flange W310x60 Floor Beam — 1-Hr(Per Linear Foot • ~4.2 sq ft/lin ft) | 30 – 52 Mils DFT ULC D949 / F906 Beam Spec | $24 – $42 / linear ft($5.75 – $10.00 / sq ft) | $48 – $78 / linear ft(Dropped bulkhead framing + Type X + tape) | Saves $24 – $36 / lin ft + Preserves 5" – 8" Headroom |
Heavy Commercial Column / Girder — 2-Hr(14 ft Height • ~65 sq ft Steel) | 75 – 145 Mils DFT Multi-Pass Intumescent | $745 – $1,085 / column($11.50 – $16.75 / sq ft) | $1,250 – $1,850 / column(2 to 3 layers of 5/8" Type X + stagger joints) | Saves $500 – $765/col + 70% Faster Schedule |
Open-Web Steel Joist (OWSJ) / Space Truss — 1-Hr(Complex Chords & Diagonal Webs) | 45 – 75 Mils DFT 3,000 PSI Airless Wrap | $7.50 – $12.50 / sq ft(Direct spray to chords/rods) | $18.00 – $32.00+ / sq ft(Requires full suspended Type X ceiling) | Eliminates Dropped Ceiling & Sprinkler Re-Piping |
Preserving Commercial Floor Area, Underground Parking Clearances & Basement Headroom (5" to 9" Saved)
Beyond direct labour savings, dimensional thickness is often the deciding factor for architects and municipal plan examiners. A 1-hour or 2-hour thin-film intumescent coating adds only 0.03 to 0.14 inches (28 to 140 mils DFT)—roughly the thickness of a credit card—to the steel surface. By contrast, framing a steel column or dropped W-beam with 1-5/8" steel studs or 7/8" furring hat-channel plus two layers of 5/8" Type X drywall adds 2.75 to 4.5 inches per side (5.5 to 9.0 inches total width/depth). In a Toronto custom home basement or retail store with a low load-bearing I-beam, drywall boxing drops ceiling height below the Ontario Building Code minimum 1.95 m (6 ft 5 in) or 2.10 m (6 ft 11 in) clearance. In an underground commercial parkade, adding 8 inches of drywall framing around structural columns narrows parking stalls below municipal zoning bylaw minimums and gets crushed by vehicle doors within weeks.
Preserving Architecturally Exposed Structural Steel (AESS) Aesthetics & Avoiding Drywall Dead-Load Penalties
When an architect specifies round hollow structural sections (HSS), wide-flange steel columns, exposed riveted heritage beams in a brick-and-beam Toronto office loft, or diagonal seismic cross-bracing, wrapping those members in bulky rectangular drywall coffers destroys the industrial aesthetic. Worse yet, two layers of 5/8" Type X gypsum board plus steel framing weigh 5.2 to 6.5 lbs per square foot, whereas cured intumescent fire coating weighs less than 0.45 lbs per square foot—preventing structural engineers from having to upsize roof joists and transfer trusses just to carry the weight of drywall.
![Clear Sansin Firestop 99 intumescent fire coating applied to high-quality pressurized mass timber walls and ceilings in Brampton (Castlemore & Credit Valley) [JOB-2026-07-24-01]](/images/jobs/intumescent-fire-coating/intumescent-fire-coating-toronto-job-2026-07-24-01-11.webp)
Single-Source Division 07 Integration: Combining Intumescent Steel + Cementitious SFRM + Turnkey 2 lb SPF & DC315
Most commercial buildings in the GTA require more than one fire-protection assembly. While exposed lobby, retail, and parking columns receive thin-film intumescent fire coating (MasterFormat 07 81 23), concealed upper-floor steel decks often specify cementitious fireproofing / SFRM (MasterFormat 07 81 16), and exterior walls or roof decks require a Single-Source Turnkey 2 lb Closed-Cell SPF + 18-Mil DC315 Thermal Barrier Package (see our DC315 vs. Drywall Thermal Barrier Cost Guide). Contracting Sprayfoam Solutions Toronto Inc. gives you one crew, one scissor-lift mobilization, and complete multi-brand ULC compliance:
- Approved Structural Steel Fireproofing Systems (
BM-44C): We install and certify Isolatek Cafco® 300, GCP Monokote® MK-6® / Z-106, Carboline Pyrocrete® / Nullifire® SC902, Sherwin-Williams Firetex® & other ULC-listed structural fireproofing systems (ADFI SprayFilm / A/D Firefilm® III,Flame Control) across allCAN/ULC-S101column, beam, and truss designs. - Approved Spray Foam Thermal Barrier Coatings (
BM-44B): Where your commercial ceiling, rim joist, or wall uses exposed polyurethane foam, we apply IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings at18 mils WFT / 12 mils DFT. - Approved Closed-Cell Spray Foam Insulation (
BM-44A): Our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers spray BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals to meetOBC SB-10andSB-12continuous insulation standards.
CAN/ULC-S101 1-Hour & 2-Hour Steel Ratings: How Intumescent Char Replaces Multi-Layer Type X Gypsum
Under 2026 Ontario Building Code Division B Section 3.1.4 & Table 3.2.2.20–3.2.2.90 and testing standards administered with the Canadian Construction Materials Centre (CCMC) at NRC Canada, a structural steel column or beam achieves its fire-resistance rating by delaying heat transfer so the steel core stays below its 538°C (1,000°F) critical yield temperature during a CAN/ULC-S101 furnace test. Type X drywall achieves this passively through crystalline water bound in 5/8" gypsum panels (ULC Design W404 / X528), whereas thin-film intumescent coating achieves the exact same 45-minute, 1-hour, or 2-hour CAN/ULC-S101 rating (ULC Design Z611 / D949 / F906) by expanding 15x to 50x its dry thickness at 200°C into a thick, microporous ceramic-carbon char blanket.

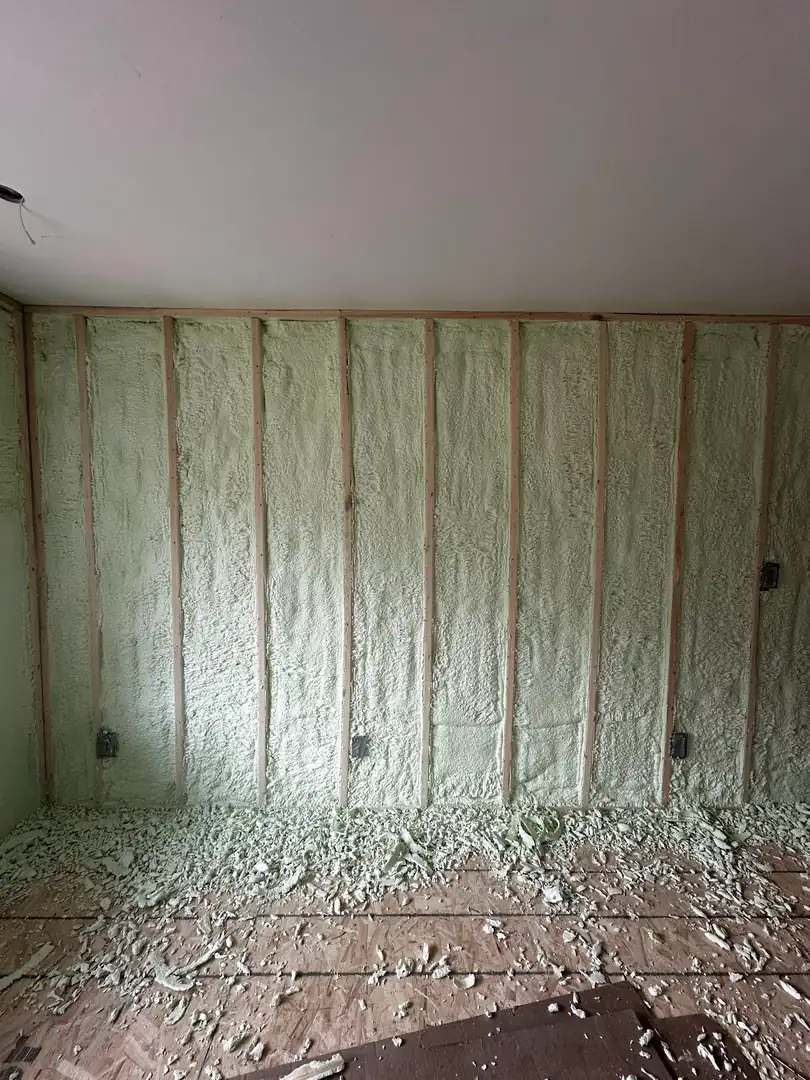

![3.5" (R22) of 2lb closed-cell spray foam across exterior 2x6 wood stud cavities in Vaughan (Kleinburg & Woodbridge) [JOB-2025-04-14-01]](/images/jobs/closed-cell-spray-foam/closed-cell-spray-foam-toronto-job-2025-04-14-01-2.webp)
Hugs every flange, web, bolt & hollow column.
Eliminates dropped drywall soffits & wide column boxes.
Keeps basements ≥1.95m & parking stalls code-wide.
When a structural W-beam drops below a basement ceiling or commercial retail corridor, boxing it with steel hat-channel and two layers of 5/8" Type X drywall steals 3.5" to 4.5" of vertical headroom and 7" to 9" of horizontal width. Spraying 35 to 60 mils DFT of CAN/ULC-S101 intumescent coating directly onto the primed steel preserves 99% of your clear height while leaving the architectural steel flange visible.
6 Critical General Contractor Rules When Replacing Drywall Steel Boxing With Intumescent Paint
To ensure your structural steel passes municipal building inspection and third-party engineering review on the first visit when switching from drywall boxing to intumescent fire coating, our engineering desk enforces 6 on-site trade rules:
- 1. Submit the ULC Design Equivalency Early (
Z600/X700vs.X500/W400): If the architectural drawings originally showed2 layers of 5/8" Type X gypsumon columns (ULC Design X528), our engineering team provides the equivalent CAN/ULC-S101 intumescent design listing (e.g., ULC Design Z611, Z608, or D949) calculated for each member’s exactW/Dratio so the architect of record and Chief Building Official sign off before spraying begins. - 2. Verify Fabricator Shop Primer Compatibility (
ASTM D3359): Whereas drywall framing hides whatever cheap red-oxide primer the steel fabricator used, intumescent coating bonds directly to the primer. We test existing primer DFT (2.0–3.5 mils) and cross-hatch adhesion, applying a ULC-listed tie-coat primer wherever bare steel or incompatible alkyd shop primer is present. - 3. Weld All Mechanical Clips, Partition Tracks & Ceiling Hangers Before Coating: In a drywall-boxed building, trades often weld or shoot fasteners into steel beams prior to boarding. With exposed intumescent steel, all welded partition top-tracks, sprinkler trapeze hangers, and electrical brackets must be installed before we mask and spray so the cured intumescent film is never breached.
- 4. Respect Flute-Filling & Top-Flange Sealing Details at Floor Decks: Where an intumescent-coated wide-flange steel beam supports a fluted steel composite floor deck, the open flutes above the top flange must be packed with ULC-approved mineral wool plugs or sprayed cleanly into the flute contour so fire cannot bypass the beam web.
- 5. Specify Matte Black, White, or Custom RAL Topcoats for Exposed Commercial Interiors: Uncoated water-based intumescent dries to a flat matte white finish suitable for dry interior spaces. For restaurants, retail flagships, gyms, offices, or damp parkade vestibules, adding a
3-milaliphatic polyurethane topcoat delivers any custom architectural colour while protecting the basecoat against humidity and cleaning. - 6. Keep
SSPC-PA2Calibrated Elcometer DFT Logs on Site for the Building Inspector: Unlike drywall where an inspector simply counts screw spacing and board layers, intumescent approval requires a member-by-member Dry Film Thickness (DFT) log showing primer thickness subtracted from total magnetic gauge readings. We hand over this complete signed binder at completion.
![Caliber Certified installer in white protective coveralls spraying 5" (R31) of 2lb closed-cell spray foam on a sloped cathedral ceiling roof deck in Markham (Unionville & Angus Glen) [JOB-2026-02-26-01]](/images/jobs/cathedral-ceiling-spray-foam/cathedral-ceiling-spray-foam-toronto-job-2026-02-26-01-1.webp)
2026 Master Comparison: Intumescent Coating vs. Multi-Layer Type X Drywall vs. Cementitious SFRM
Whether you are value-engineering a commercial warehouse package in the GTA or finishing a custom residential basement with exposed steel I-beams, here is how all three structural steel fireproofing methods compare in 2026:
| Performance & Cost Factor | Thin-Film Intumescent Coating (07 81 23) | Multi-Layer 5/8" Type X Drywall Boxing | Cementitious SFRM (Monokote MK-6 / Z-106) |
|---|---|---|---|
2026 Installed Cost(/sq ft Steel) | $5.50 – $11.50 (1-Hr) • $11.50 – $17.50 (2-Hr) | $9.50 – $18.50+ / sq ft(Framing + 2x Type X + Tape + Paint) | $2.25 – $4.85 / sq ft(Concealed Steel Only) |
Total Per-Column Cost(10–12 ft) | $185 – $520 / column(1-Hr) | $440 – $1,050+ / column(1-Hr) | $110 – $260 / column(Rough industrial finish) |
Space / Headroom Lost Per Side | 0.03" to 0.14"( 28–140 mils) | 2.75" to 4.50" per side( 5.5" – 9.0" total) | 0.50" to 1.75" per side |
Number of Sub-Trades Required | 1 Single Certified Fireproofing Crew | 3 Sub-Trades(Steel Framers + Boarders + Tapers/Painters) | 1 Certified SFRM Fireproofing Crew |
Aesthetic Finish Quality | Sleek AESS Architectural Steel Profile(Any Colour) | Bulky rectangular drywall box with corner beads | Rough, fibrous gray/tan plaster texture |
Inspection Verification Method | Calibrated SSPC-PA2 Digital Elcometer DFT Binder | Visual check of base layer screws before 2nd layer | ASTM E605 thickness pin & ASTM E736 bond test |
Same-Week Structural Steel Intumescent Fleet Dispatch Across Toronto, the GTA & Ontario
From single-beam residential inspection rescues in Toronto custom homes to 40,000+ sq ft commercial AESS structural steel packages and commercial building envelope insulation, our Caliber Certified (CAN/ULC-S705.2 Licensed) & Certified Structural Fireproofing Installers mobilize with $0 surrounding GTA travel fee:
Get an instant price at /price-chat or send your steel schedule (HSS/W-shapes) for an exact CAN/ULC-S101 DFT takeoff.
We verify existing shop primer DFT and adhesion, mask surrounding floors/glazing, and apply tie-coat primer if needed.
High-pressure airless application of 45-min, 1-hr, or 2-hr intumescent basecoat plus optional custom colour topcoat.
Member-by-member digital SSPC-PA2 dry-film thickness logging and ULC compliance binder handover to your inspector.
Frequently Asked Questions
Yes—on almost every commercial and residential project in 2026, thin-film intumescent fire coating ($5.50 to $11.50/sq ft or $185 to $520 per column for a 1-hour CAN/ULC-S101 rating) is 30% to 45% less expensive than paying steel-stud framers, drywall boarders, and tapers $9.50 to $18.50+ per sq ft ($440 to $1,050+ per column) to construct multi-layer 5/8" Type X gypsum enclosures. Call Sprayfoam Solutions Toronto Inc. at (647) 333-3626 or check your exact price in 60 seconds at spfsolutions.ca/price-chat.
A 1-hour or 2-hour intumescent fire coating adds only 0.03" to 0.14" (28 to 140 mils DFT) to the steel surface, whereas framing a steel beam or column with metal furring channels and two layers of 5/8" Type X drywall adds 2.75" to 4.50" per side (5.5" to 9.0" total width). Switching to intumescent coating preserves vital basement headroom (≥1.95 m / 6 ft 5 in under the Ontario Building Code) and keeps underground commercial parking stalls at full legal width.
Yes. Under 2026 Ontario Building Code Division B Part 3 (Section 3.1.4) and Part 9, any required 45-minute, 1-hour, 1.5-hour, or 2-hour fire-resistance rating on structural steel columns (HSS or W-shape) and beams can be satisfied by a CAN/ULC-S101 tested and ULC-listed intumescent fire-resistive coating applied to the exact Dry Film Thickness mandated for that member’s W/D ratio. Sprayfoam Solutions Toronto Inc. ((647) 333-3626 • spfsolutions.ca/price-chat) supplies the complete ULC & Elcometer DFT sign-off binder for your municipal building inspector.
For structural steel and concrete assemblies, we install Isolatek Cafco® 300, GCP Monokote® MK-6® / Z-106, Carboline Pyrocrete® / Nullifire® SC902, Sherwin-Williams Firetex® & other ULC-listed structural fireproofing systems (ADFI SprayFilm / A/D Firefilm® III, Flame Control). For projects that also include spray foam insulation, our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers pair BASF Walltite® Eco v.3, Huntsman Building Solutions (Icynene/Demilec), Johns Manville & other approved CCMC spray foam chemicals with IFTI DC315® (CCMC #14036-R), No-Burn® Plus ThB, Flame Control No. 60-60A & other approved CAN/ULC-S124 thermal barrier coatings.
Framing multi-layer 5/8" Type X drywall around individual chords, diagonal web rods, and gusset plates of an open-web steel joist or seismic brace is geometrically impractical—forcing general contractors to build an expensive, full-area suspended fire-rated gypsum ceiling and drop every fire sprinkler and HVAC diffuser below it. High-pressure 3,000+ PSI airless intumescent coating sprays directly onto the open steel truss in place, keeping the high ceiling open.
Yes. Once the intumescent basecoat has cured and our technicians have logged the net SSPC-PA2 Dry Film Thickness with a calibrated Elcometer gauge, we apply a manufacturer-approved aliphatic polyurethane or acrylic urethane topcoat (2.5–4.0 mils DFT) in Architect Matte Black, Pure White, Charcoal Grey, Metallic Silver, or any custom RAL, Benjamin Moore, or Sherwin-Williams shade.
If your structural steel beams and fluted metal floor decks will be completely hidden above an acoustic T-bar ceiling or inside a utility level, you do not need either drywall boxing or architectural intumescent paint. Instead, our fireproofing crew can spray cementitious fireproofing / SFRM (GCP Monokote® MK-6 / Z-106 or Isolatek Cafco® 300 / 400) at $2.25 to $4.85 per sq ft—the lowest-cost 1-hour to 2-hour CAN/ULC-S101 solution in Ontario.
You can get an instant 2026 ballpark price with a $250 Estimate Credit in 60 seconds at spfsolutions.ca/price-chat (No Site Visit Required), submit structural drawings via our General Contractor Bid Desk, or call Sprayfoam Solutions Toronto Inc. at (647) 333-3626 for same-week dispatch across Toronto, the GTA, and Southern Ontario.
