Freezing Pipes or Musty Crawl Space in Winter? Ontario 2 lb Spray Foam Encapsulation & 2026 Cost Guide

Freezing Pipes or Musty Crawl Space in Winter? Ontario 2 lb Spray Foam Encapsulation & 2026 Cost Guide: 2026 Ontario Overview & Code Essentials

Waking up on a -22°C January morning in Toronto, Mississauga, Hamilton, Barrie, or Muskoka to discover frozen PEX or copper water lines, icy-cold main-floor hardwood planks, or a persistent musty, earthy smell rising from a damp crawl space is one of the most urgent winter failures Ontario homeowners face. For decades, builders constructed vented dirt or gravel crawl spaces stuffed with pink fiberglass batts between the floor joists—assuming outdoor vents would keep the crawl space dry. In Ontario’s humid summers and sub-zero winters, that outdated design does the exact opposite: summer humidity condenses on cool joists and sags the fiberglass into a wet rodent nest, while winter wind whips straight through the rim joists and freezes exposed plumbing pipes.

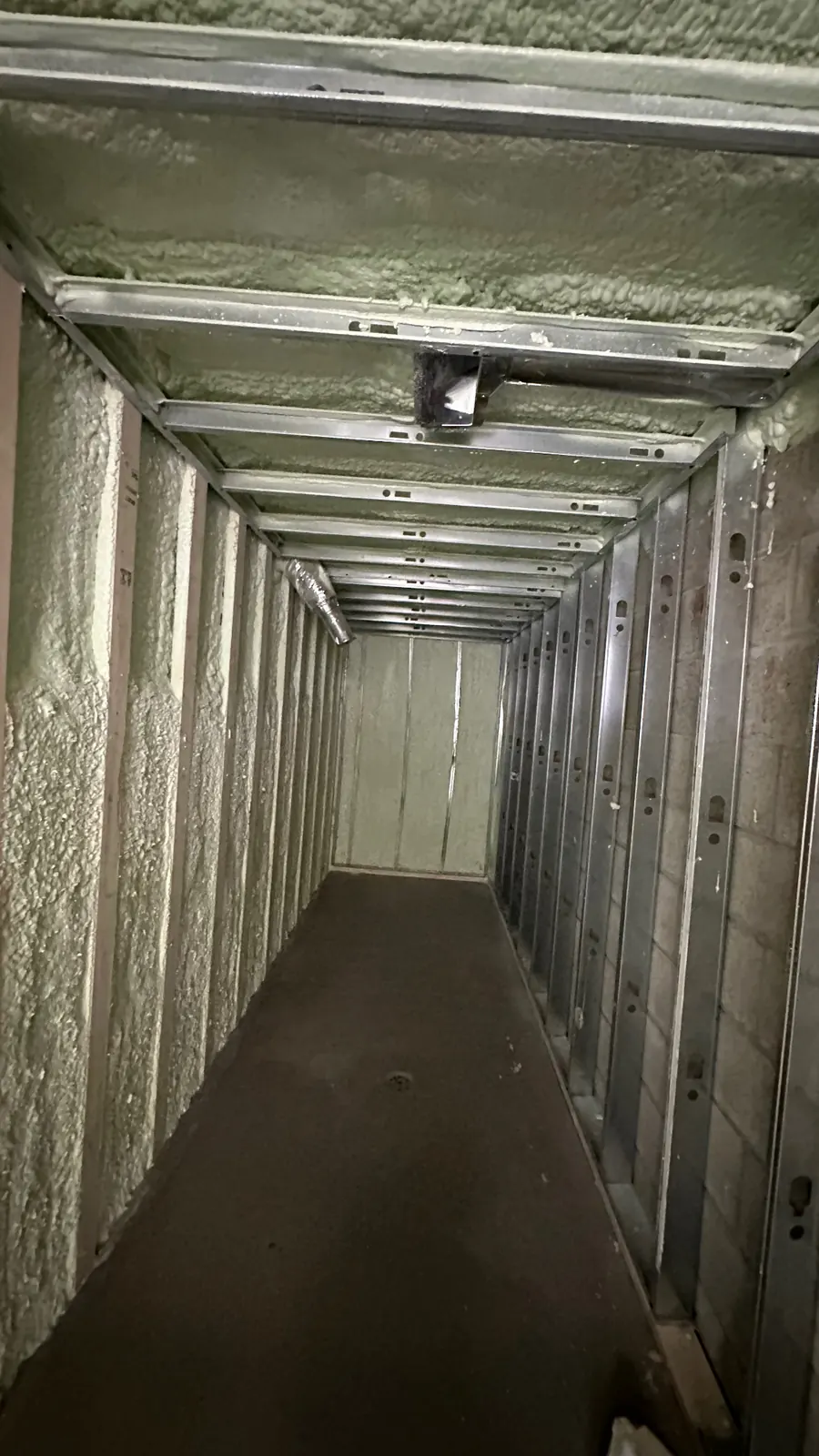

The permanent building-science cure is crawl space spray foam insulation and encapsulation installed by Sprayfoam Solutions Toronto Inc. Operating Caliber Certified (CAN/ULC-S705.2 Licensed) Installers across Toronto, the GTA, and Southern/Central Ontario, we seal crawl space foundation walls, rim joists, or under-floor cavities with 2 lb medium-density closed-cell spray polyurethane foam (CAN/ULC-S705.1)—bringing your plumbing pipes inside the warm thermal envelope or locking them safely above a monolithic R-20 to R-31 air and Class 1 vapour barrier. Get a $250 Credit on Your Estimate — Check Your Price in 60 Seconds (/price-chat) • No Site Visit Required, or call (647) 333-3626.

2026 Crawl Space Spray Foam Insulation Cost Per Square Foot in Ontario

In 2026, the cost to insulate a crawl space with 2 lb closed-cell spray polyurethane foam (CAN/ULC-S705.1) in Ontario averages $2.50 to $4.85 per sq ft ($1.15 to $1.45 per board foot) for perimeter foundation walls (2.0" to 3.5" depth, R-12 to R-21) and $4.50 to $6.50 per sq ft for 4.0" to 5.0" (R-24 to R-31) sprayed overhead into open floor joist bays above vented or pier-and-beam cottage foundations. If contaminated, mouse-nested fiberglass batts must be extracted first, our old insulation removal service adds $1.25 to $2.50 per sq ft. Compare all six 2026 Ontario crawl space assemblies below:

2026 Worked Ontario Crawl Space Examples (400 Sq Ft Addition vs. 850 Sq Ft Home vs. 1,100 Sq Ft Cottage)

Because perimeter wall encapsulation measures only the vertical foundation wall height (typically 3 ft to 4 ft high) plus the rim joist perimeter, whereas under-floor joist foaming covers the entire floor footprint plus joist depths, here are three real-world 2026 Ontario project breakdowns:

Why Crawl Space Water Pipes Freeze & Hardwood Floors Cup in Ontario Homes

Every winter across Toronto, Scarborough, Etobicoke, Mississauga, Oakville, Burlington, Hamilton, and cottage country, homeowners spend thousands of dollars thawing burst plumbing pipes or running space heaters in their crawl spaces. As explained in our 5 signs your basement or crawl space needs insulation guide, three building-physics flaws cause crawl space failures:

• 1. The "Stack Effect" Sucks -20°C Air Through Rim Joists & Louvered Vents: As warm furnace air rises to the upper storeys of your home and escapes into the attic, it creates negative pressure at the lowest level. Your house acts like a giant vacuum chimney—pulling freezing outdoor air straight through unsealed crawl space vents, porous cinder-block mortar joints, and wood sill plates directly onto copper and PEX water pipes.
• 2. Fiberglass Batts Between Floor Joists Leave Plumbing Lines on the Freezing Side: When fiberglass batts are stuffed between 2x8 or 2x10 floor joists above a crawl space, any water supply pipes, drain traps, or hydronic heating lines hanging below or near the bottom of the joists are isolated on the cold, unheated side of the insulation—where temperatures drop below 0°C during cold snaps.
• 3. Unsealed Dirt or Cracked Concrete Floors Pump 30 to 50 Litres of Moisture Daily Into Subfloors: Bare soil and damp rubble walls release continuous ground moisture vapour. In summer and spring, relative humidity inside an unsealed crawl space exceeds 75% to 85%, causing oak and maple hardwood floors directly above to cup, buckle, and absorb musty fungal odours (see how spray foam prevents basement and crawl space mould).

Crawl Space Walls vs. Under-Floor Joists: Which Spray Foam Method Stops Freezing Pipes Best?

One of the most important engineering questions we answer on every estimate (and break down in depth in Should You Insulate Crawl Space Walls or the Floor Above?) is whether to spray 2 lb closed-cell foam on the perimeter foundation walls or overhead against the underside of the subfloor. Under 2026 Ontario Building Code Section 9.25 and SB-12, the right choice depends on your foundation structure and plumbing layout:

How We Protect Water Pipes When Spraying Under-Floor Joists in Pier-and-Beam Cottages

If your Muskoka, Georgian Bay, Kawartha, or rural Ontario home sits on concrete piers, helical piles, or an unheated stone crawl space that cannot be conditioned, we insulate the underside of the floor deck (4.5" to 5.0" of 2 lb closed-cell foam for R-28 to R-31). To prevent plumbing freeze-ups in an unheated floor assembly, our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers never bury pipes on the cold bottom edge of the foam. Instead, water lines are secured directly against the warm underside of the OSB/plywood subfloor (or wrapped with self-regulating heat trace cable where supply risers enter from below ground), leaving a warm convective air channel against the heated subfloor while encapsulating the exterior side with 3.5" to 5.0" of closed-cell foam.

Ontario Building Code Crawl Space Rules: R-Value, Vapour Barrier & Ignition Barrier (OBC 2026)

All crawl space insulation in Ontario must comply with the Ontario Building Code and the National Research Council Canada / CCMC CAN/ULC-S705.1 & S705.2 standards. As detailed in our Ontario basement and crawl space vapour barrier guide, applying 2.0 inches or more of 2 lb closed-cell spray polyurethane foam achieves a water vapour permeance below 60 ng/(Pa·s·m²)—satisfying the Class 1 vapour barrier requirement without hanging separate 6-mil poly sheeting on the walls.

Same-Week Crawl Space Encapsulation & Old Batt Removal Across Toronto, the GTA & Ontario

Working inside low-headroom (24" to 48" clearance) crawl spaces requires specialized fresh-air respiratory gear, negative-pressure HEPA ventilation, and heated mobile proportioner hoses. Every project is completed by our Caliber Certified (CAN/ULC-S705.2 Licensed) Installers with $0 surrounding GTA travel fee:

OUR 4-STEP CRAWL SPACE ENCAPSULATION PROCESS

How We Transform Freezing, Musty Crawl Spaces in 1 Working Day

1

60-Second Quote & Pipe/Moisture Check

Step 1 • Fixed Pricing

Get an instant ballpark at /price-chat and confirm whether wall encapsulation or under-floor foaming fits your foundation.

2

Old Batt Removal & Ground Liner Prep

Morning • Clean & Dry (<18%)

We bag and extract damp fiberglass batts, mask plumbing valves/wiring, verify <18% wood moisture, and lay ground poly.

3

CAN/ULC-S705.1 2 lb Closed-Cell Foam Pass

Mid-Day • R-21 to R-31 Seal

Heated-hose application of 3.0"–5.0" 2 lb closed-cell spray foam across crawl space walls, rim joists, or subfloors.

4

Thermal Barrier & CAN/ULC-S705.2 Sign-Off

Afternoon • Final Handover

Optional DC315 thermal barrier pass if used for storage, negative-air ventilation purge, and signed CCMC warranty card.
